Description

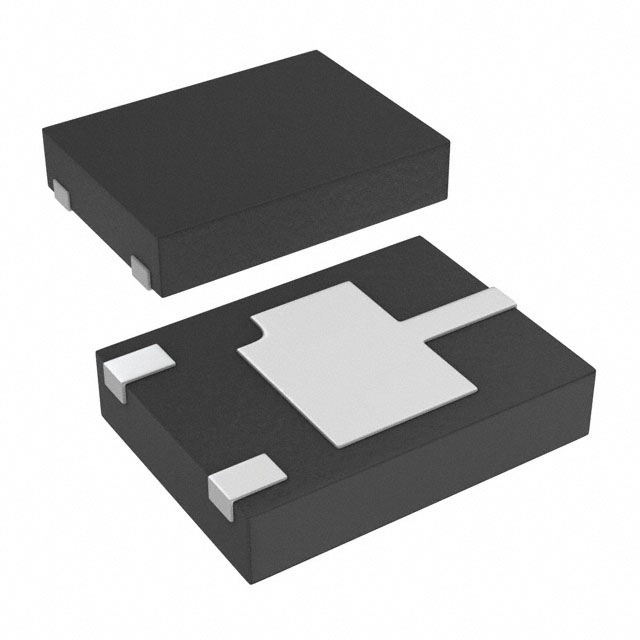

P-Channel 20 V 2.5A (Ta) 530mW (Ta) Surface Mount DFN2015H4-3
Specifications
- Mfr
- Diodes Incorporated
- Grade
- -
- Series
- -
- FET Type
- P-Channel
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Vgs (Max)
- ±8V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 3-XFDFN
- Vgs(th) (Max) @ Id
- 1V @ 250µA
Operating Temperature-55°C ~ 150°C (TJ) Rds On (Max) @ Id, Vgs54mOhm @ 2.5A, 4.5V Power Dissipation (Max)530mW (Ta) Supplier Device PackageDFN2015H4-3 Gate Charge (Qg) (Max) @ Vgs9.1 nC @ 4.5 V Drain to Source Voltage (Vdss)20 V Input Capacitance (Ciss) (Max) @ Vds214 pF @ 10 V Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V Current - Continuous Drain (Id) @ 25°C2.5A (Ta) Pricing tiers
