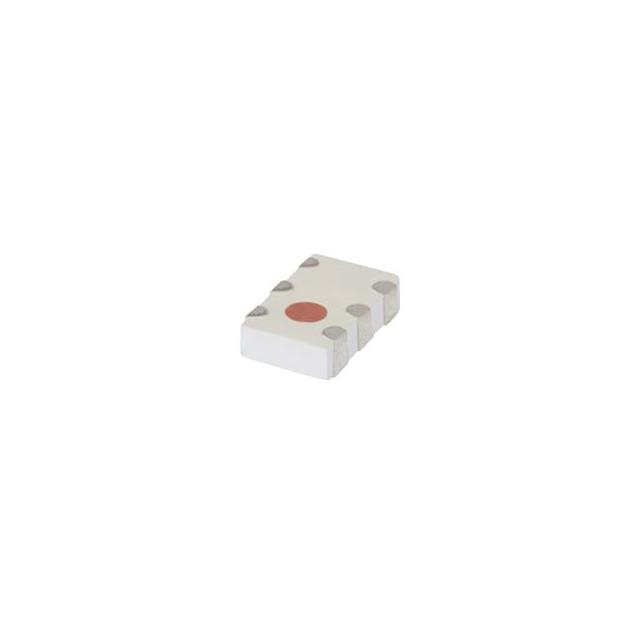

DPGE-252-492R+
DPLXR, 2400-2500/4900-5950 MHZ
Manufacturer: Mini-CircuitsIC code: 3157-DPGE-252-492R+TR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Diplexer 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz 0805 (2012 Metric), 6 PC Pad
Specifications
- Type
- Diplexer
- Series
- -
- Packaging
- Tape & Reel (TR)
- Part Status
- Active
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Package / Case
- 0805 (2012 Metric), 6 PC Pad
- Frequency Bands (Low / High)
- 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
- Return Loss (Low Band / High Band)
- -
- Low Band Attenuation (min / max dB)
- -
- High Band Attenuation (min / max dB)
- -
