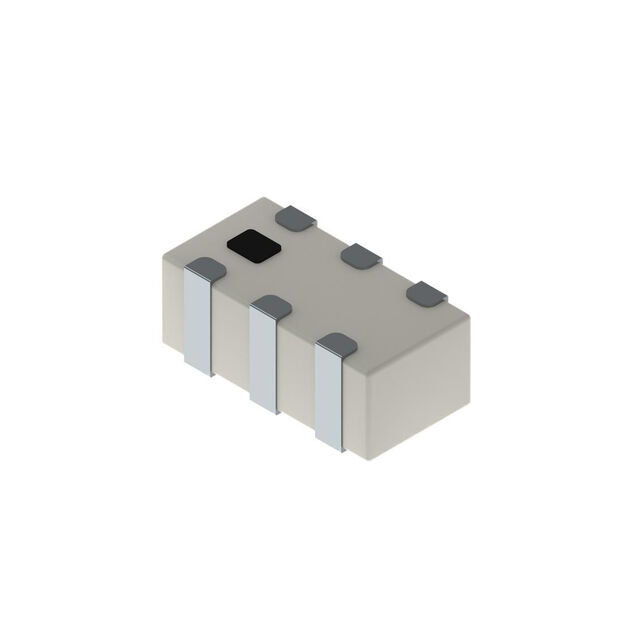

DPX1005LKGBRWH60L
DIPLEXER 0.7-2.7GHZ / 5-7GHZ GB
Manufacturer: Pulse ElectronicsIC code: 553-DPX1005LKGBRWH60LTR-ND - Tape & Reel (TR) || 553-DPX1005LKGBRWH60LCT-ND - Cut Tape (CT) || 553-DPX1005LKGBRWH60LDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Diplexer 1.164GHz ~ 1.61GHz, 2.4GHz ~ 2.5GHz, 2.496GHz ~ 2.69GHz / 5.15GHz ~ 5.95GHz, 5.95GHz ~ 6.245GHz, 6.245GHz ~ 7.125GHz 0402 (1005 Metric)
Specifications
- Type
- Diplexer
- Grade
- -
- Series
- 1005
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Pulse Electronics
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 0402 (1005 Metric)
- Frequency Bands (Low / High)
- 1.164GHz ~ 1.61GHz, 2.4GHz ~ 2.5GHz, 2.496GHz ~ 2.69GHz / 5.15GHz ~ 5.95GHz, 5.95GHz ~ 6.245GHz, 6.245GHz ~ 7.125GHz
- Return Loss (Low Band / High Band)
- 12.0dB / 10.0dB
