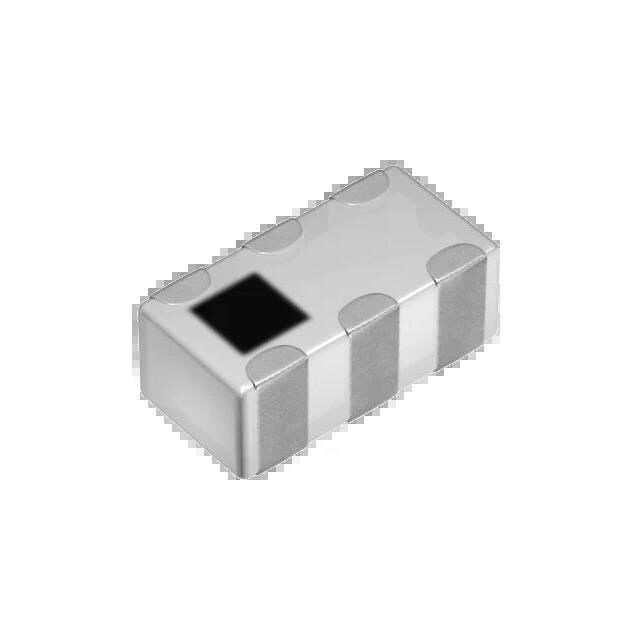

DPX167125DT-8197B1
2.4-2.5GHz W-LAN&BT/5-7GHz W-LAN
Manufacturer: TDK CorporationIC code: 445-DPX167125DT-8197B1TR-ND - Tape & Reel (TR) || 445-DPX167125DT-8197B1CT-ND - Cut Tape (CT) || 445-DPX167125DT-8197B1DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Diplexer 617MHz ~ 2.4GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz / 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz 0603 (1608 Metric), 6 PC Pad
Specifications
- Type
- Diplexer
- Grade
- -
- Series
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- TDK Corporation
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 0603 (1608 Metric), 6 PC Pad
- Frequency Bands (Low / High)
- 617MHz ~ 2.4GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz / 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz
- Return Loss (Low Band / High Band)
- -
- Low Band Attenuation (min / max dB)
