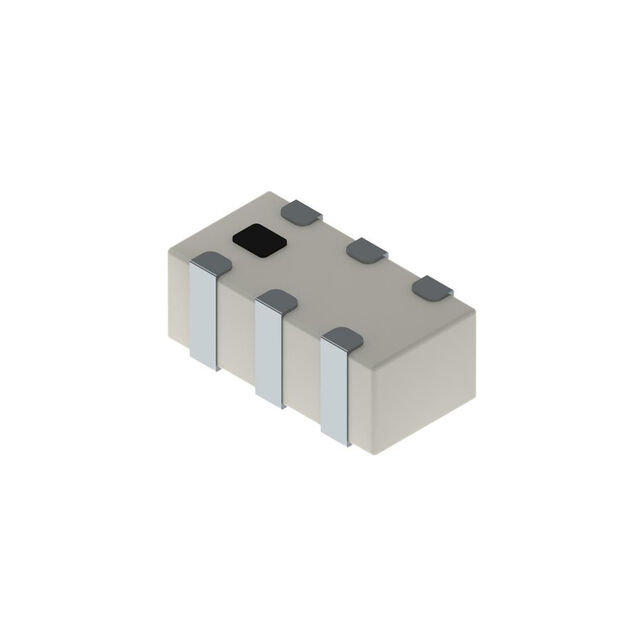

DPX2012LKHHR1931L
ANT MB & HB N78 DIPLEXER
Manufacturer: Pulse ElectronicsIC code: 553-DPX2012LKHHR1931LTR-ND - Tape & Reel (TR) || 553-DPX2012LKHHR1931LCT-ND - Cut Tape (CT) || 553-DPX2012LKHHR1931LDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Diplexer 1.71GHz ~ 2.2GHz / 2.496GHz ~ 3.8GHz 0805 (2012 Metric), 6 PC Pad
Specifications
- Type
- Diplexer
- Series
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Obsolete
- Manufacturer
- Pulse Electronics
- Mounting Type
- Surface Mount
- Package / Case
- 0805 (2012 Metric), 6 PC Pad
- Frequency Bands (Low / High)
- 1.71GHz ~ 2.2GHz / 2.496GHz ~ 3.8GHz
- Return Loss (Low Band / High Band)
- -
- Low Band Attenuation (min / max dB)
- 11.00dB / -
- High Band Attenuation (min / max dB)
- 11.00dB / -
