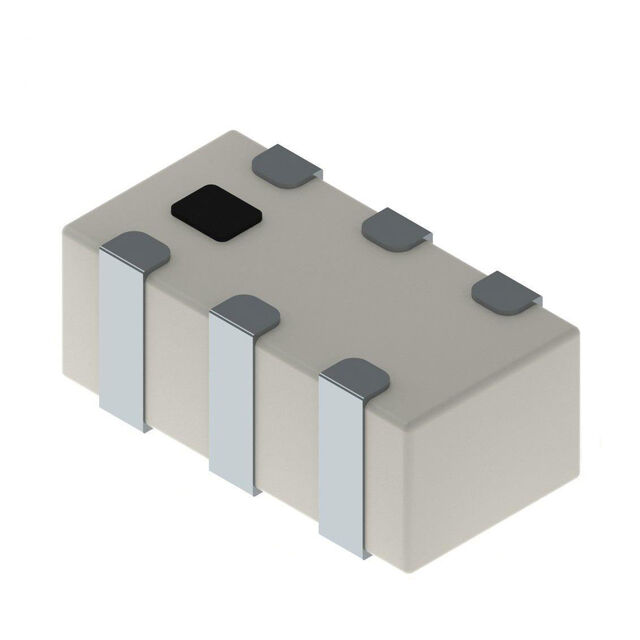

DPX2012LKWARWH46L
2012 0.7-2.7GHZ, N77+5G DPX TYPE
Manufacturer: Pulse ElectronicsIC code: 553-DPX2012LKWARWH46LTR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Diplexer 617MHz ~ 2.69GHz / 3.3GHz ~ 5.925GHz 0805 (2012 Metric)
Specifications
- Type
- Diplexer
- Grade
- -
- Series
- 2012
- Packaging
- Tape & Reel (TR)
- Part Status
- Active
- Manufacturer
- Pulse Electronics
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 0805 (2012 Metric)
- Frequency Bands (Low / High)
- 617MHz ~ 2.69GHz / 3.3GHz ~ 5.925GHz
- Return Loss (Low Band / High Band)
- -
- Low Band Attenuation (min / max dB)
- 17.00dB / -
