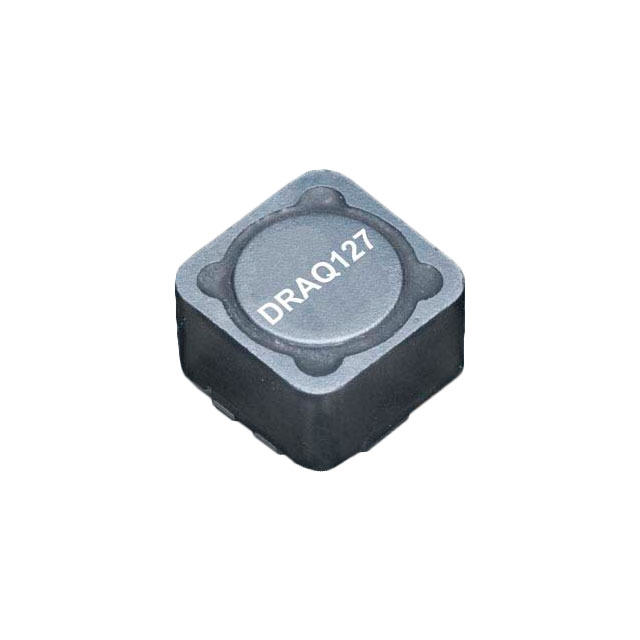

DRAQ127-330-R
INDUCT ARRAY 2 COIL 32UH SMD
Manufacturer: Eaton - Electronics DivisionIC code: 283-4517-2-ND - Tape & Reel (TR) || 283-4517-1-ND - Cut Tape (CT) || 283-4517-6-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Shielded 2 Coil Inductor Array 128 µH Inductance - Connected in Series 32 µH Inductance - Connected in Parallel 72mOhm Max DC Resistance (DCR) - Parallel 3.22 A Nonstandard
Specifications
- Height
- 0.315" (8.00mm)
- Series
- DRAQ127
- Ratings
- AEC-Q200
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Shielded
- Tolerance
- ±25%
- Part Status
- Active
- Manufacturer
- Eaton - Electronics Division
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Number of Coils
- 2
- Size / Dimension
- 0.480" L x 0.480" W (12.20mm x 12.20mm)
