DRAQ75-680-R

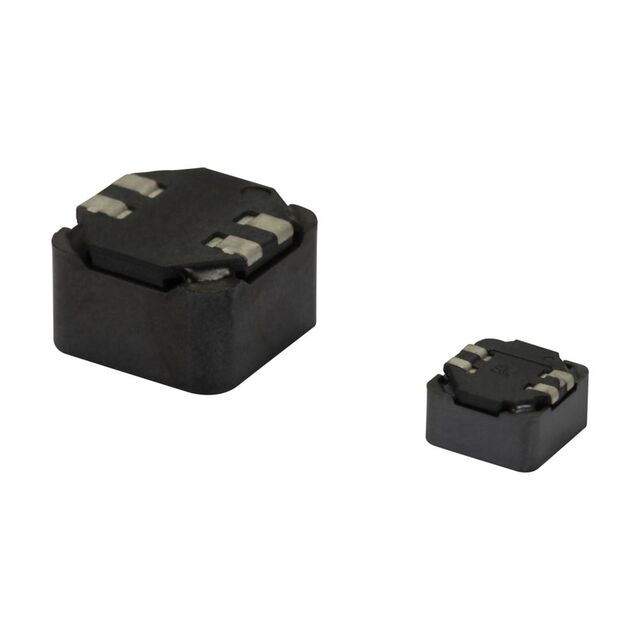

IND DRAQ75 68UH SMT SHLD
Manufacturer: Eaton - Electronics DivisionIC code: 283-DRAQ75-680-RTR-ND - Tape & Reel (TR) || 283-DRAQ75-680-RCT-ND - Cut Tape (CT)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Shielded 2 Coil Inductor Array 273.21 µH Inductance - Connected in Series 68.3 µH Inductance - Connected in Parallel 324mOhm Max DC Resistance (DCR) - Parallel 1.39 A Nonstandard
Specifications
- Height
- 0.177" (4.50mm)
- Series
- DRAQ75
- Ratings
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT)
- Shielding
- Shielded
- Tolerance
- ±25%
- Part Status
- Active
- Manufacturer
- Eaton - Electronics Division
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Number of Coils
- 2
- Size / Dimension
- 0.299" L x 0.299" W (7.60mm x 7.60mm)
