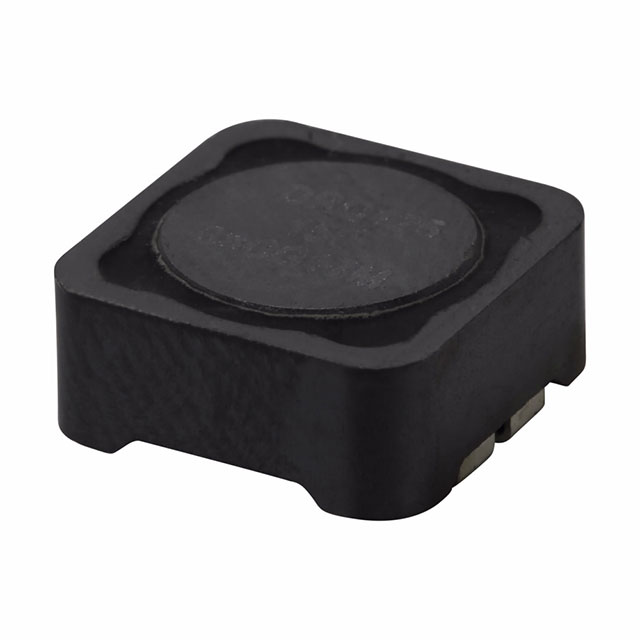

DRQ125-8R2-R
INDUCT ARRAY 2 COIL 8.048UH SMD
Manufacturer: Eaton - Electronics DivisionIC code: 283-DRQ125-8R2-RTR-ND - Tape & Reel (TR) || 283-DRQ125-8R2-RCT-ND - Cut Tape (CT) || 283-DRQ125-8R2-RDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Shielded 2 Coil Inductor Array 32.19 µH Inductance - Connected in Series 8.048 µH Inductance - Connected in Parallel 17.6mOhm DC Resistance (DCR) - Parallel 5.54 A Nonstandard
Specifications
- Height
- 0.236" (6.00mm)
- Series
- DRQ
- Ratings
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Shielded
- Tolerance
- ±20%
- Part Status
- Active
- Manufacturer
- Eaton - Electronics Division
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Number of Coils
- 2
- Size / Dimension
- 0.492" L x 0.492" W (12.50mm x 12.50mm)
