DXTN5820DFDB-7

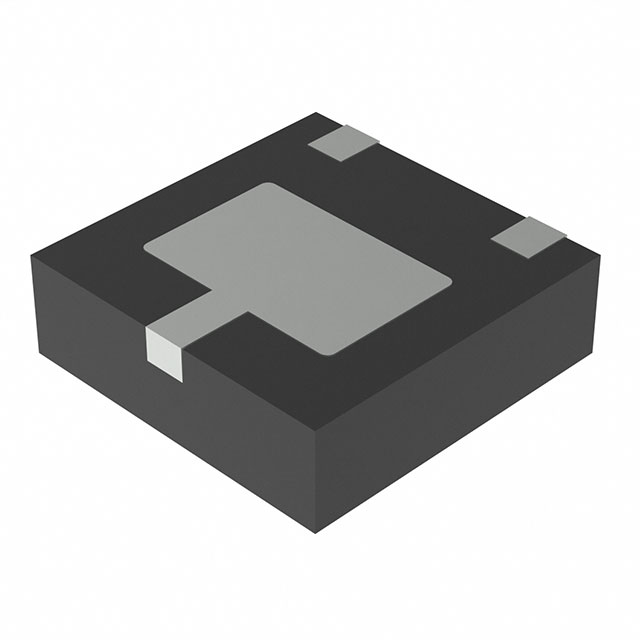

TRANS NPN 20V 6A UDFN2020-3
Manufacturer: Diodes IncorporatedIC code: 31-DXTN5820DFDB-7TR-ND - Tape & Reel (TR) || 31-DXTN5820DFDB-7CT-ND - Cut Tape (CT) || 31-DXTN5820DFDB-7DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Bipolar (BJT) Transistor NPN 20 V 6 A 80MHz 690 mW Surface Mount U-DFN2020-3 (Type B)
Specifications
- Mfr
- Diodes Incorporated
- Series
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Power - Max
- 690 mW
- Mounting Type
- Surface Mount
- Package / Case
- 3-UDFN Exposed Pad
- Transistor Type
- NPN
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Frequency - Transition
- 80MHz
- Supplier Device Package
- U-DFN2020-3 (Type B)
- Vce Saturation (Max) @ Ib, Ic
- 275mV @ 300mA, 6A
