Description

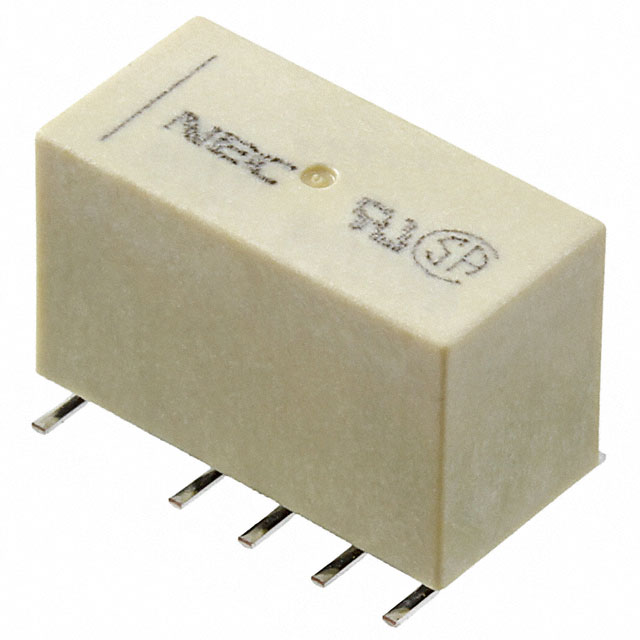

General Purpose Relay DPDT (2 Form C) Surface Mount
Specifications
- Grade
- -
- Series
- EE2
- Features
- -
- Coil Type
- Latching, Dual Coil
- Packaging
- Tube
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- -
- Coil Current
- 28 mA
- Coil Voltage
- 5VDC
- Contact Form
- DPDT (2 Form C)
- Manufacturer
- KEMET
- Operate Time
- 2 ms
- Release Time
Mounting TypeSurface Mount Approval AgencyCSA, TUV, UL Contact MaterialSilver Alloy, Gold Alloy Switching Voltage250VAC, 220VDC - Max Termination StyleGull Wing Base Product NumberEE2-5T Load - Max Switching500VA, 440W Must Operate Voltage3.75 VDC Operating Temperature-40°C ~ 85°C Contact Rating (Current)2 A Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥28.03000 |
| Tube | 10 | ¥24.99500 |
| Tube | 35 | ¥23.47514 |
| Tube | 70 | ¥22.67043 |
| Tube | 105 | ¥22.21305 |
| Tube | 280 | ¥21.14236 |
| Tube | 525 | ¥20.48303 |
| Tube | 1,015 | ¥19.81335 |
