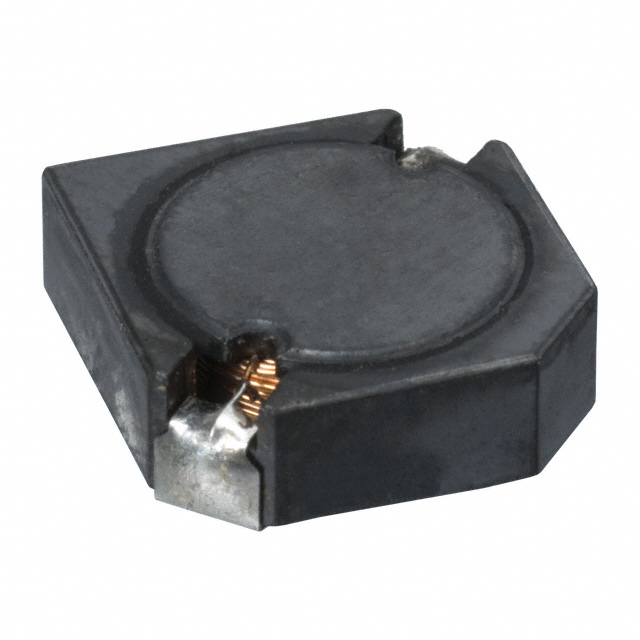

ELL-CTV331M
FIXED IND 330UH 660MA 500MOHM SM
Manufacturer: Panasonic Electronic ComponentsIC code: PCD2170TR-ND - Tape & Reel (TR) || PCD2170CT-ND - Cut Tape (CT) || PCD2170DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
330 µH Shielded Drum Core, Wirewound Inductor 660 mA 500mOhm Nonstandard
Specifications
- Mfr
- Panasonic Electronic Components
- Type
- Drum Core, Wirewound
- Series
- V
- Ratings
- -
- Q @ Freq
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Shielded
- Tolerance
- ±20%
- Inductance
- 330 µH
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- Ferrite
- Size / Dimension
- 0.472" L x 0.472" W (12.00mm x 12.00mm)
- Base Product Number
- ELL-CTV
- DC Resistance (DCR)
- 500mOhm
- Current Rating (Amps)
- 660 mA
- Height - Seated (Max)
- 0.177" (4.50mm)
