F50360

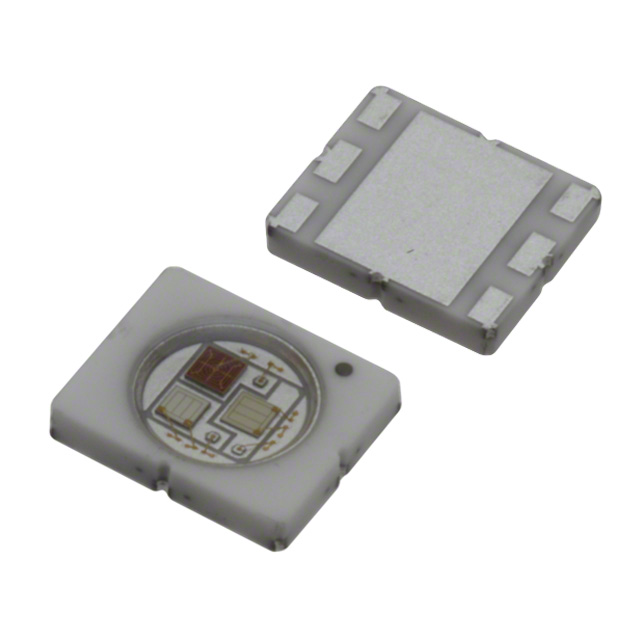

LED Z-POWER RGB 625/525/460 SMD
Manufacturer: Seoul Semiconductor Inc.IC code: 897-1016-2-ND - Tape & Reel (TR) || 897-1016-1-ND - Cut Tape (CT) || 897-1016-6-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
LED Lighting Color Z Power P5-II Red, Green, Blue (RGB) 625nm Red, 525nm Green, 460nm Blue 2420 (6050 Metric)
Specifications
- Mfr
- Seoul Semiconductor Inc.
- Color
- Red, Green, Blue (RGB)
- Series
- Z Power P5-II
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Wavelength
- 625nm Red, 525nm Green, 460nm Blue
- Part Status
- Obsolete
- Current - Max
- 400mA Red, 400mA Green, 400mA Blue
- Mounting Type
- Surface Mount
- Viewing Angle
- 120°
- Current - Test
- 350mA Red, 350mA Green, 350mA Blue
- Package / Case
- 2420 (6050 Metric)
- Size / Dimension
- 0.236" L x 0.197" W (6.00mm x 5.00mm)
- Temperature - Test
- 25°C
- Height - Seated (Max)
- 0.047" (1.20mm)
- Supplier Device Package
- SMD
- Lumens/Watt @ Current - Test
- 40 lm/W Red, 43 lm/W Green, 10 lm/W Blue
- Voltage - Forward (Vf) (Typ)
