FCPF165N65S3R0L

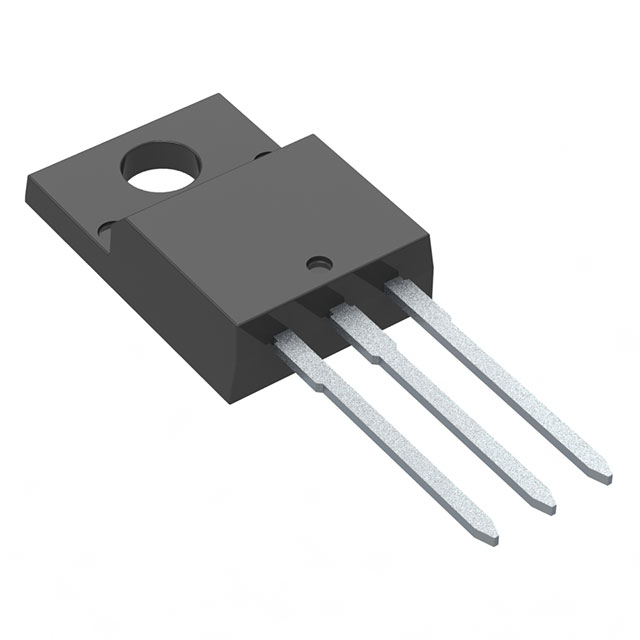

FCPF165N65S3R0L - POWER MOSFET,
Manufacturer: Fairchild SemiconductorIC code: 2156-FCPF165N65S3R0L-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 650 V 19A (Tc) 35W (Tc) Through Hole TO-220F-3
Specifications
- Mfr
- Fairchild Semiconductor
- Grade
- -
- Series
- SuperFET® III
- FET Type
- N-Channel
- Packaging
- Bulk
- Vgs (Max)
- ±30V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Obsolete
- Mounting Type
- Through Hole
- Qualification
- -
- Package / Case
- TO-220-3 Full Pack
- Vgs(th) (Max) @ Id
- 4.5V @ 410µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 165mOhm @ 9.5A, 10V
- Power Dissipation (Max)
- 35W (Tc)
- Supplier Device Package
- TO-220F-3
- Gate Charge (Qg) (Max) @ Vgs
- 35 nC @ 10 V
