FDMS9620S

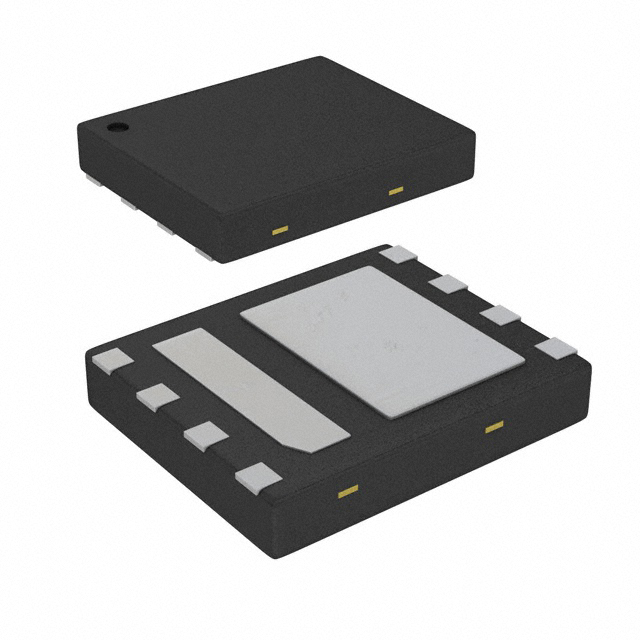

MOSFET 2N-CH 30V 7.5A/10A 8MLP
Manufacturer: onsemiIC code: FDMS9620STR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Mosfet Array 30V 7.5A, 10A 1W Surface Mount 8-MLP (5x6), Power56
Specifications
- Series
- PowerTrench®
- Packaging
- Tape & Reel (TR)
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- Logic Level Gate
- Part Status
- Obsolete
- Power - Max
- 1W
- Manufacturer
- onsemi
- Configuration
- 2 N-Channel (Dual)
- Mounting Type
- Surface Mount
- Package / Case
- 8-PowerWDFN
- Vgs(th) (Max) @ Id
- 3V @ 250µA
- Base Product Number
- FDMS9620
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 21.5mOhm @ 7.5A, 10V
- Supplier Device Package
- 8-MLP (5x6), Power56
- Gate Charge (Qg) (Max) @ Vgs
- 14nC @ 10V
- Drain to Source Voltage (Vdss)
- 30V
