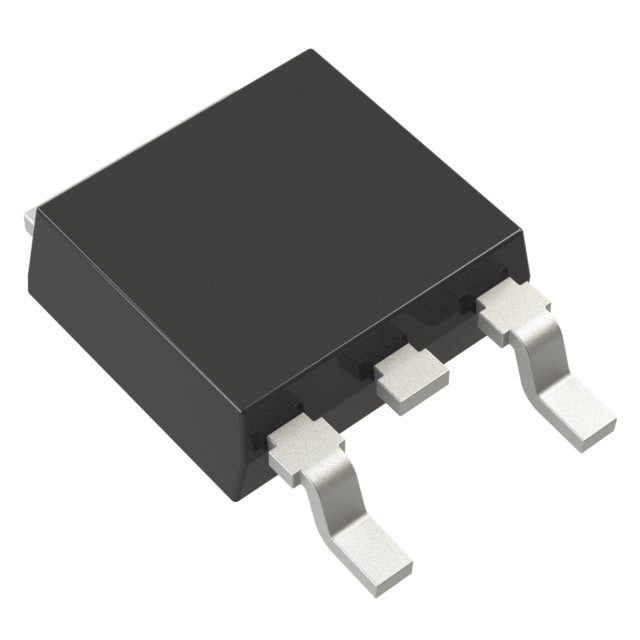

FGD3040G2-F085C
IGBT 400V 41A TO-252
Manufacturer: onsemiIC code: 488-FGD3040G2-F085CTR-ND - Tape & Reel (TR) || 488-FGD3040G2-F085CCT-ND - Cut Tape (CT) || 488-FGD3040G2-F085CDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
IGBT 400 V 41 A 150 W Surface Mount TO-252 (DPAK)
Specifications
- Grade
- Automotive
- Series
- EcoSPARK®
- IGBT Type
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Input Type
- Logic
- Gate Charge
- 21 nC
- Part Status
- Active
- Power - Max
- 150 W
- Manufacturer
- onsemi
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q101
- Package / Case
- TO-252-3, DPAK (2 Leads + Tab), SC-63
- Test Condition
- 300V, 6.5A, 1000Ohm, 5V
- Switching Energy
- -
- Base Product Number
- FGD3040
- Td (on/off) @ 25°C
- 0.9µs/4.8µs
- Operating Temperature
- -55°C ~ 175°C (TJ)
- Supplier Device Package
- TO-252 (DPAK)
- Vce(on) (Max) @ Vge, Ic
- 1.25V @ 4V, 6A
- Current - Collector (Ic) (Max)
- 41 A
- Voltage - Collector Emitter Breakdown (Max)
- 400 V
Pricing tiers
| Packaging | Qty | Unit price |
|---|---|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥16.79000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥10.74300 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥7.26190 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥5.77180 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥5.44083 |
| Tape & Reel (TR) | 2,500 | ¥4.77384 |
| Tape & Reel (TR) | 5,000 | ¥4.45341 |
| Tape & Reel (TR) | 7,500 | ¥4.44512 |
