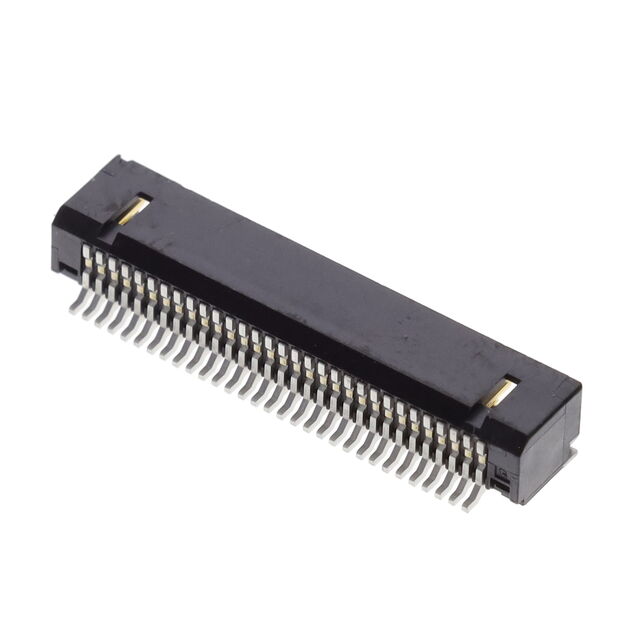

FI-W31P-HFE-E1500
CONN HEADER SMD R/A 31POS 1.25MM
Manufacturer: JAE ElectronicsIC code: 670-FI-W31P-HFE-E1500TR-ND - Tape & Reel (TR) || 670-FI-W31P-HFE-E1500CT-ND - Cut Tape (CT) || 670-FI-W31P-HFE-E1500DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 31 position 0.049" (1.25mm)
Specifications
- Mfr
- JAE Electronics
- Style
- Board to Cable/Wire
- Series
- FI
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Receptacle
Fastening TypeFriction Lock Pitch - Mating0.049" (1.25mm) Contact MaterialCopper Alloy Insulation Height0.146" (3.70mm) Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating0.055" (1.40mm) Contact Finish - PostTin or Tin-Alloy Current Rating (Amps)1A per Contact Operating Temperature-40°C ~ 80°C Contact Finish - MatingGold Contact Length - Mating0.094" (2.40mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥41.85000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥35.59400 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥30.24830 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥28.20414 |
| Tape & Reel (TR) | 1,500 | ¥23.04257 |
