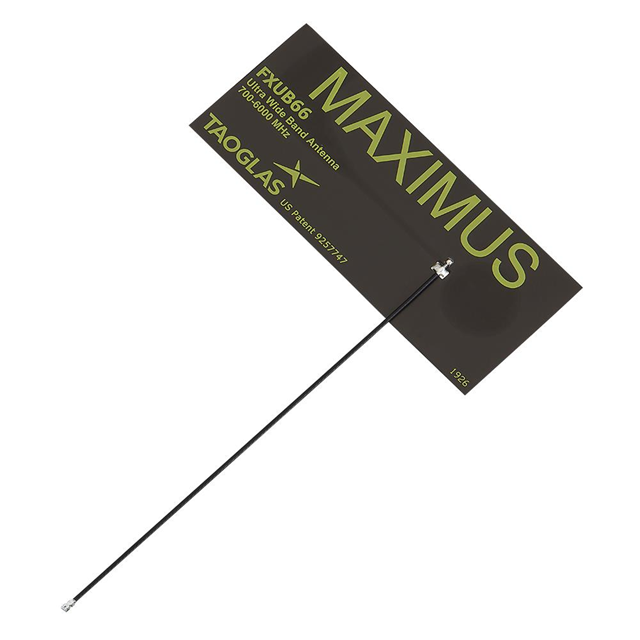

FXUB66.54.0150C
MAXIMUS ULTRA WIDE BAND FLEX ANT
Manufacturer: Taoglas LimitedIC code: 931-FXUB66.54.0150C-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF ANTENNA 2G, 3G, 4G, 5G, GNSS, ISM, Wi-Fi Flat Patch I-PEX MHF4L Adhesive
Specifications
- Gain
- 0.2dBi, 2.5dBi, 4.1dBi, 2dBi, 1.6dBi, 2.8dBi, 2.6dBi, 3.5dBi, 4.8dBi
- VSWR
- 1.1, 2, 2.2, 3, 3.5
- Series
- Maximus
- Features
- Cable - 150mm
- Packaging
- Bulk
- Part Status
- Active
- Power - Max
- 5 W
- Return Loss
- -5dB, -5.5dB, -6dB, -7dB, -10dB, -20dB
- Termination
- I-PEX MHF4L
- Antenna Type
- Flat Patch
- Applications
- 2G, 3G, 4G, 5G, GNSS, ISM, Wi-Fi
- Height (Max)
- 0.008" (0.20mm)
- Manufacturer
