Description

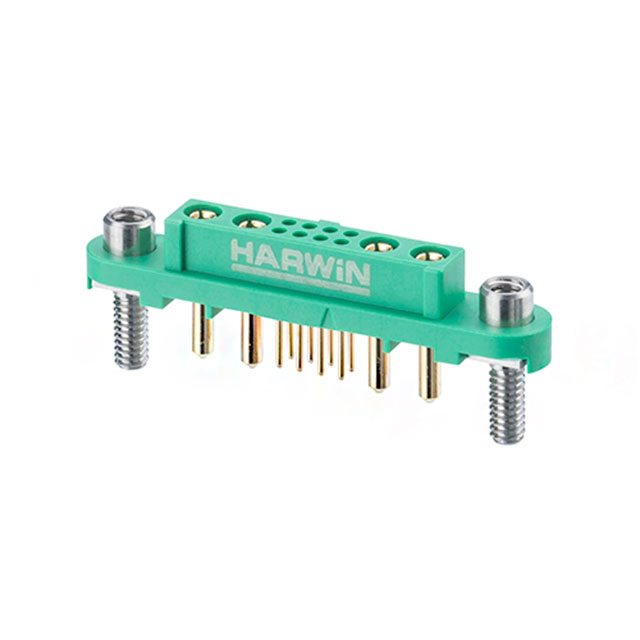

12 (8 + 4 Power) Position Receptacle Connector 0.049" (1.25mm) Through Hole Gold
Specifications
- Mfr
- Harwin Inc.
- Style
- Board to Board or Cable
- Series
- Gecko MT Reverse Fix
- Features
- Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
- Packaging
- Strip
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Female Socket
- Contact Shape
- Circular
- Mounting Type
- Through Hole
- Connector Type
- Receptacle
- Fastening Type
Pitch - Mating0.049" (1.25mm) Contact MaterialBeryllium Copper Insulation Height0.207" (5.25mm) Base Product NumberG125-FV1 Insulation MaterialPolyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free Number of Positions12 (8 + 4 Power) Row Spacing - Mating0.049" (1.25mm) Contact Finish - PostGold Contact Length - Post0.118" (3.00mm) Current Rating (Amps)2A, 10A Operating Temperature-65°C ~ 150°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Strip | 1 | ¥635.71000 |
| Strip | 10 | ¥540.35300 |
| Strip | 100 | ¥459.39960 |
