Description

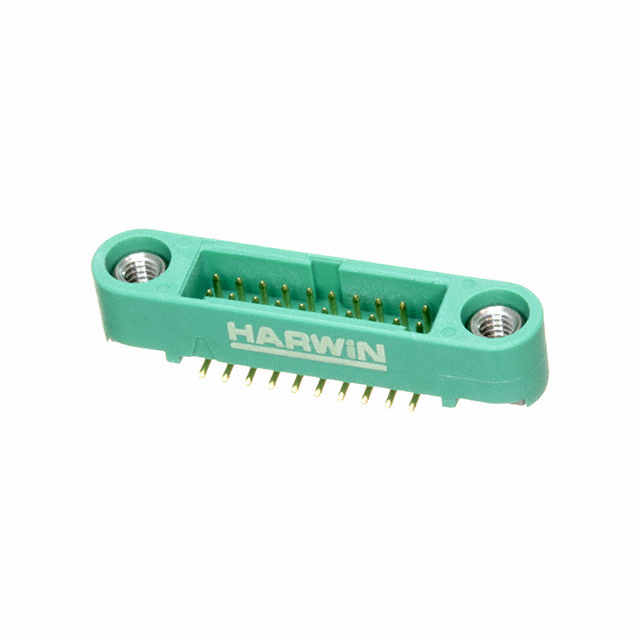

Connector Header Surface Mount 20 position 0.049" (1.25mm)
Specifications
- Mfr
- Harwin Inc.
- Style
- Board to Board or Cable
- Series
- Gecko SL
- Features
- Mating Flange, Mounting Flange, Pick and Place
- Packaging
- Strip
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Circular
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.049" (1.25mm) Contact MaterialPhosphor Bronze Insulation Height0.193" (4.90mm) Base Product NumberG125-MS1 Insulation MaterialPolyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free Row Spacing - Mating0.049" (1.25mm) Contact Finish - PostGold Operating Temperature-65°C ~ 150°C Mated Stacking Heights7.3mm, 7.44mm Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post8.00µin (0.203µm) Contact Finish Thickness - Mating8.00µin (0.203µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Strip | 1 | ¥168.87000 |
| Strip | 10 | ¥143.50900 |
| Strip | 100 | ¥121.98900 |
| Strip | 500 | ¥108.90718 |
