Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

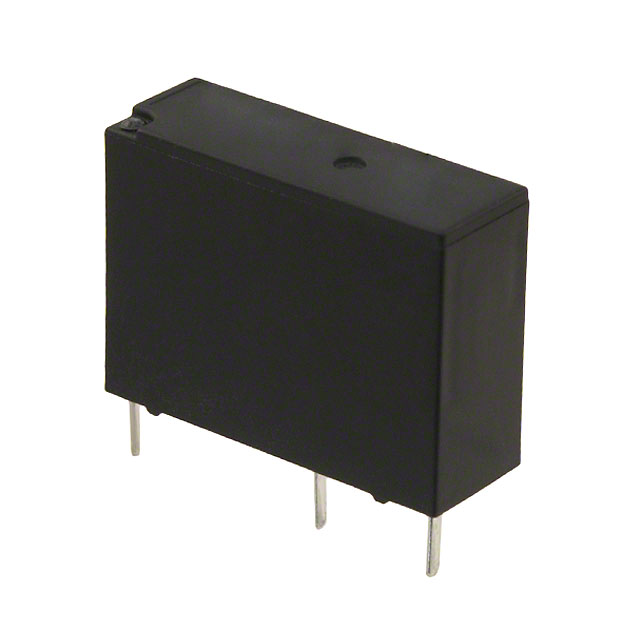

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Specifications
- Mfr
- Omron Electronics Inc-EMC Div
- Grade
- -
- Series
- G5NB
- Features
- -
- Coil Type
- Non Latching
- Packaging
- Tray
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- Sealed - Flux Protection
- Coil Current
- 8.3 mA
- Coil Voltage
- 24VDC
- Contact Form
- SPST-NO (1 Form A)
- Operate Time
- 10 ms
Mounting TypeThrough Hole Approval AgencyCQC, CSA, UR, VDE Coil Resistance2.88 kOhms Switching Voltage250VAC, 30VDC - Max Base Product NumberG5NB-1A Load - Max Switching1250VA, 150W Must Operate Voltage18 VDC Must Release Voltage2.4 VDC Operating Temperature-40°C ~ 70°C Contact Rating (Current)5 A Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥17.43000 |
| Tray | 10 | ¥15.52500 |
| Tray | 25 | ¥14.83160 |
| Tray | 50 | ¥14.32300 |
| Tray | 100 | ¥13.83250 |
| Tray | 250 | ¥13.20932 |
| Tray | 500 | ¥12.75632 |
| Tray | 1,000 | ¥12.31841 |
| Tray | 5,000 | ¥11.35771 |
