Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

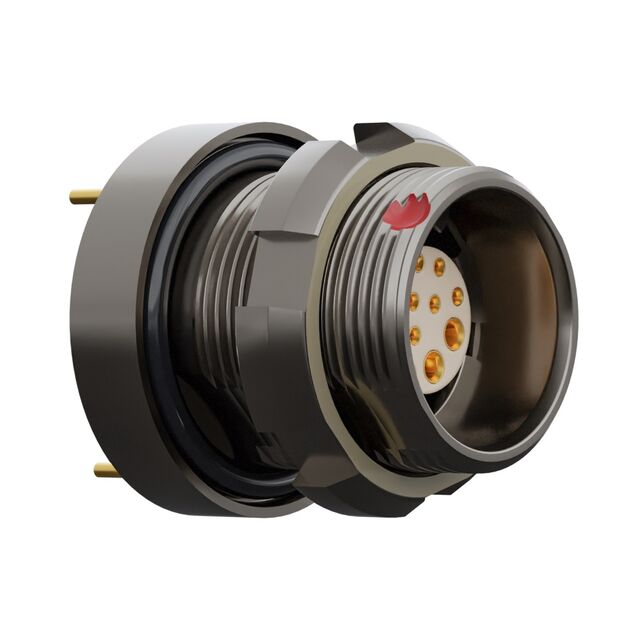

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
Specifications
- Mfr
- ODU
- Color
- Black, Silver
- Grade
- -
- Series
- ODU AMC® High-Density
- Features
- -
- Packaging
- Box
- Shielding
- Shielded
- Orientation
- A
- Part Status
- Active
- Termination
- Solder Cup
- Applications
- Industrial, Medical, Military
- Shell Finish
- Ruthenium over Electroless Nickel
- Cable Opening
- -
Connector TypeReceptacle, Female Sockets Shell MaterialCopper Alloy Insert MaterialPolyetheretherketone (PEEK) Contact MaterialCopper Alloy Mounting FeatureBulkhead - Front Side Nut Ingress ProtectionIP68/IP69K - Dust Tight, Water Resistant, Waterproof Current Rating (Amps)1A, 10A Operating Temperature-51°C ~ 125°C Contact Finish - MatingGold Backshell Material, Plating- Material Flammability Rating- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥928.69000 |
| Box | 10 | ¥823.01200 |
| Box | 100 | ¥760.32500 |
