HAT2054M-EL-E

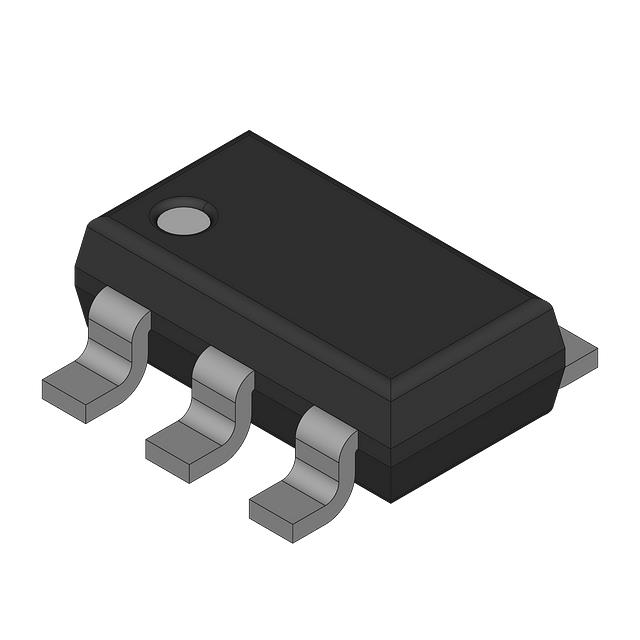

MOSFET N-CH 30V 6.3A 6TSOP
Manufacturer: Renesas Electronics CorporationIC code: 2156-HAT2054M-EL-E-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 30 V 6.3A (Ta) 1.05W (Ta) Surface Mount 6-TSOP
Specifications
- Mfr
- Renesas Electronics Corporation
- Grade
- -
- Series
- -
- FET Type
- N-Channel
- Packaging
- Bulk
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- SOT-23-6 Thin, TSOT-23-6
- Vgs(th) (Max) @ Id
- 2.5V @ 1mA
- Operating Temperature
- 150°C
- Rds On (Max) @ Id, Vgs
- 31mOhm @ 3A, 10V
- Power Dissipation (Max)
- 1.05W (Ta)
- Supplier Device Package
- 6-TSOP
- Drain to Source Voltage (Vdss)
- 30 V
