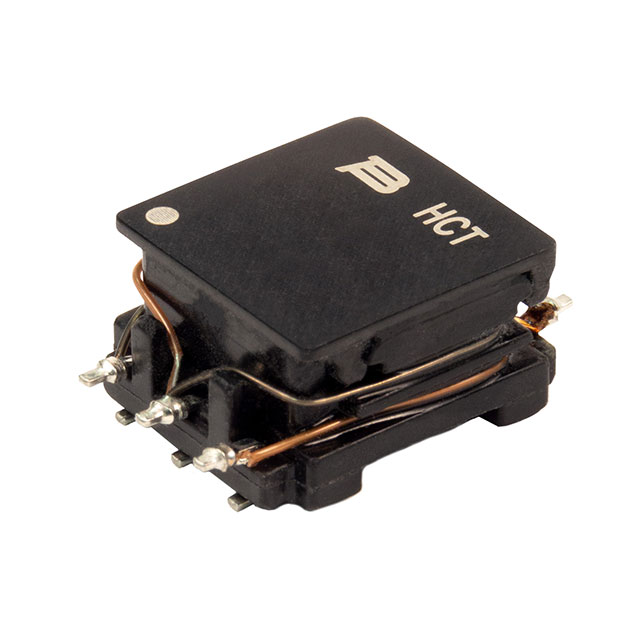

HCTSM80102AAL-E1
XFRMR POWER 1:2 250UH SMD
Manufacturer: Bourns Inc.IC code: 118-HCTSM80102AAL-E1TR-ND - Tape & Reel (TR) || 118-HCTSM80102AAL-E1CT-ND - Cut Tape (CT) || 118-HCTSM80102AAL-E1DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
250µH Pulse Transformer 1:2 Surface Mount
Specifications
- Series
- HCT
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Inductance
- 250µH
- Part Status
- Discontinued at Digi-Key
- Manufacturer
- Bourns Inc.
- Mounting Type
- Surface Mount
- ET (Volt-Time)
- 11.0VµS
- Size / Dimension
- 0.598" L x 0.425" W (15.20mm x 10.80mm)
- Transformer Type
- -
- Height - Seated (Max)
- 0.256" (6.50mm)
- Operating Temperature
- -40°C ~ 125°C
- Turns Ratio - Primary:Secondary
- 1:2
