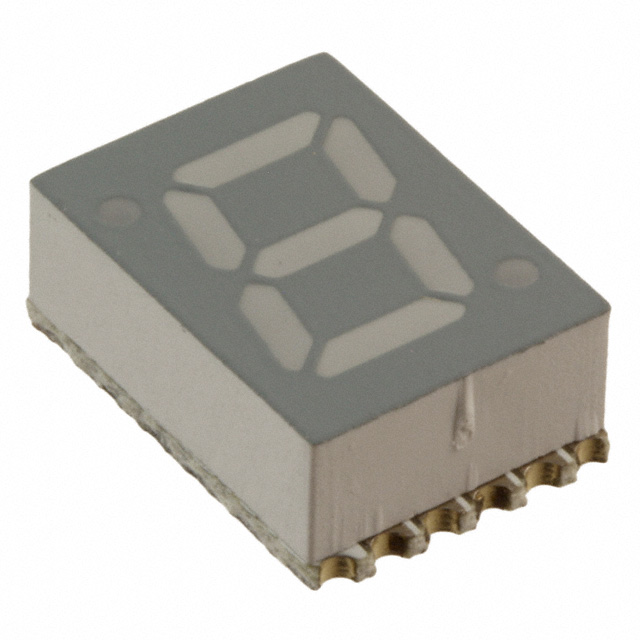

HDSM-283C
DISPLAY 7SEG 0.28" SGL RED 12SMD
Manufacturer: Broadcom LimitedIC code: 516-3011-2-ND - Tape & Reel (TR) || 516-3011-1-ND - Cut Tape (CT) || 516-3011-6-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) 12-SMD, No Lead, 11 Pads
Specifications
- Color
- Red
- Series
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Common Pin
- Common Cathode
- Part Status
- Active
- Display Type
- 7-Segment
- Manufacturer
- Broadcom Limited
- Current - Test
- 20mA
- Package / Case
- 12-SMD, No Lead, 11 Pads
- Digit/Alpha Size
- 0.28" (7.00mm)
- Size / Dimension
- 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm)
- Wavelength - Peak
- 632nm
