Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

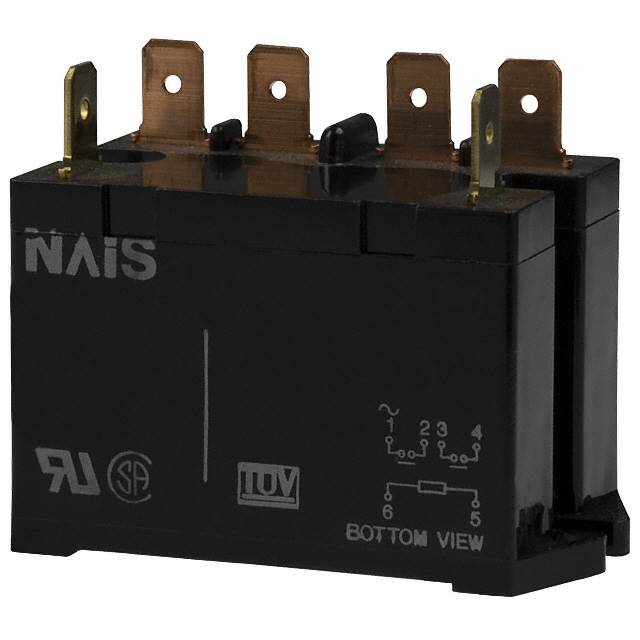

General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Chassis Mount
Specifications
- Mfr
- Panasonic Electric Works
- Grade
- -
- Series
- HE
- Features
- -
- Coil Type
- Non Latching
- Packaging
- Bulk
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- -
- Coil Current
- 80 mA
- Coil Voltage
- 24VDC
- Contact Form
- DPST-NO (2 Form A)
- Operate Time
- 30 ms
- Release Time
Mounting TypeChassis Mount Approval AgencyCSA, VDE, UR Contact MaterialSilver Tin Oxide (AgSnO) Switching Voltage277VAC, 30VDC - Max Termination StyleQuick Connect - 0.250" (6.3mm) Load - Max Switching6925VA, 750W Must Operate Voltage16.8 VDC Must Release Voltage2.4 VDC Operating Temperature-50°C ~ 55°C Contact Rating (Current)25 A Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥158.85000 |
| Bulk | 20 | ¥136.60850 |
| Bulk | 40 | ¥131.91875 |
| Bulk | 60 | ¥129.25050 |
| Bulk | 100 | ¥125.96390 |
| Bulk | 260 | ¥120.03412 |
| Bulk | 500 | ¥116.13476 |
