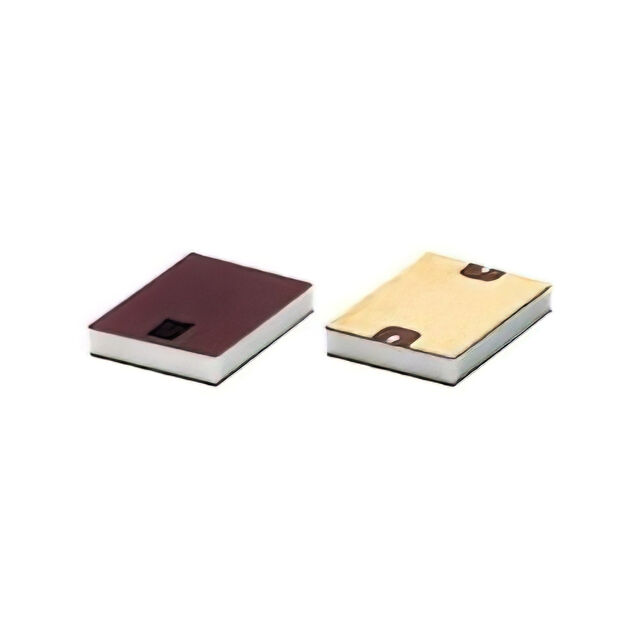

HFCU-1782+
LTCC SMT HPF, 18.3 - 34 GHZ
Manufacturer: Mini-CircuitsIC code: 3157-HFCU-1782+TR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
26.15GHz Center Frequency High Pass RF Filter (Radio Frequency) 15.75GHz Bandwidth 3.2dB 1812 (4532 Metric), 3 PC Pad
Specifications
- Ripple
- -
- Series
- -
- Bandwidth
- 15.75GHz
- Frequency
- 26.15GHz Center
- Packaging
- Tape & Reel (TR)
- Filter Type
- High Pass
- Part Status
- Active
- Height (Max)
- 0.034" (0.87mm)
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Insertion Loss
- 3.2dB
- Package / Case
- 1812 (4532 Metric), 3 PC Pad
- Size / Dimension
