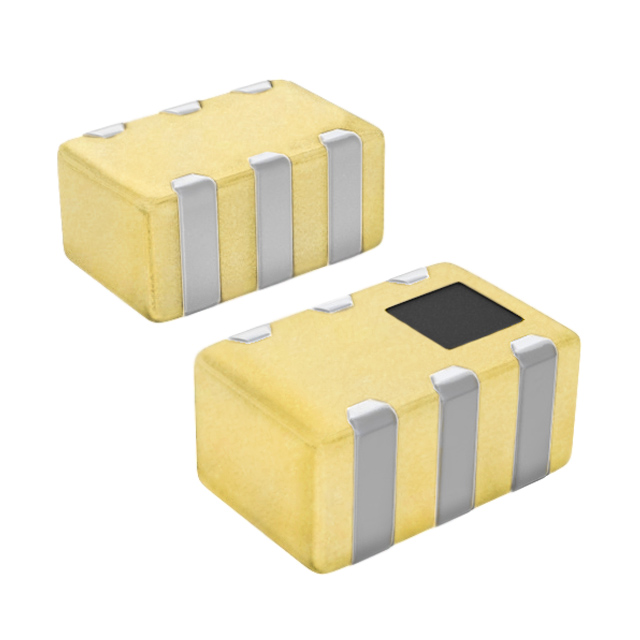

HHM1520A2
BALUN 2.3GHZ-2.5GHZ 50/100 0805
Manufacturer: TDK CorporationIC code: 445-3985-2-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Balun 2.3GHz ~ 2.5GHz 50 / 100Ohm 0805 (2012 Metric)
Specifications
- Series
- HHM
- Packaging
- Tape & Reel (TR)
- Part Status
- Obsolete
- Manufacturer
- TDK Corporation
- Mounting Type
- Surface Mount
- Package / Case
- 0805 (2012 Metric)
- Frequency Range
- 2.3GHz ~ 2.5GHz
- Phase Difference
- 180° ±10°
- Return Loss (Min)
- 10dB
- Insertion Loss (Max)
- 1.0dB
- Impedance - Unbalanced/Balanced
- 50 / 100Ohm
