Description

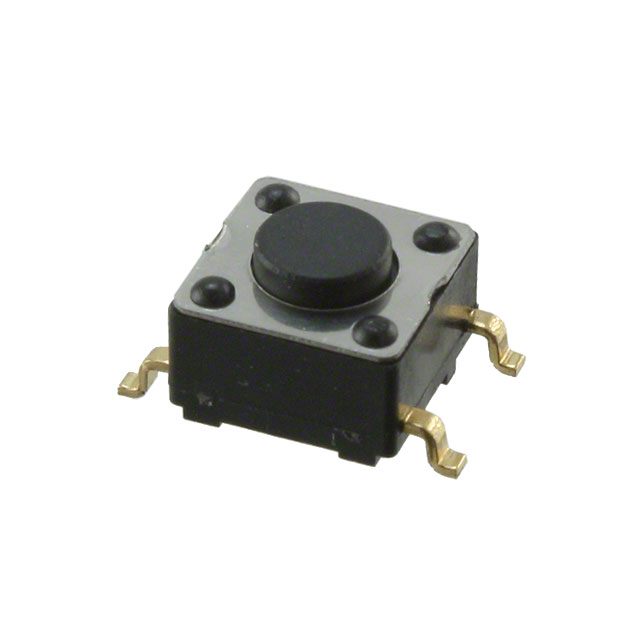

Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- NKK Switches
- Series
- HP03
- Circuit
- SPST-NO
- Outline
- 6.20mm x 6.20mm
- Features
- Sealed - Flux Protection
- Packaging
- Tube
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.20mm
- Mechanical Life
- 500,000 Cycles
- Operating Force
- 160gf
Actuator MaterialPolyamide (PA), Nylon, Glass Filled Termination StyleGull Wing Base Product NumberHP0315A Actuator OrientationTop Actuated Operating Temperature-20°C ~ 70°C Contact Rating @ Voltage0.4VA @ 28VAC/DC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical4.40mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥18.77000 |
| Tube | 10 | ¥15.79600 |
| Tube | 25 | ¥14.65440 |
| Tube | 100 | ¥13.05250 |
| Tube | 300 | ¥11.93333 |
| Tube | 500 | ¥11.46436 |
| Tube | 1,000 | ¥10.88165 |
| Tube | 2,500 | ¥10.20527 |
| Tube | 5,000 | ¥9.76157 |
