Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

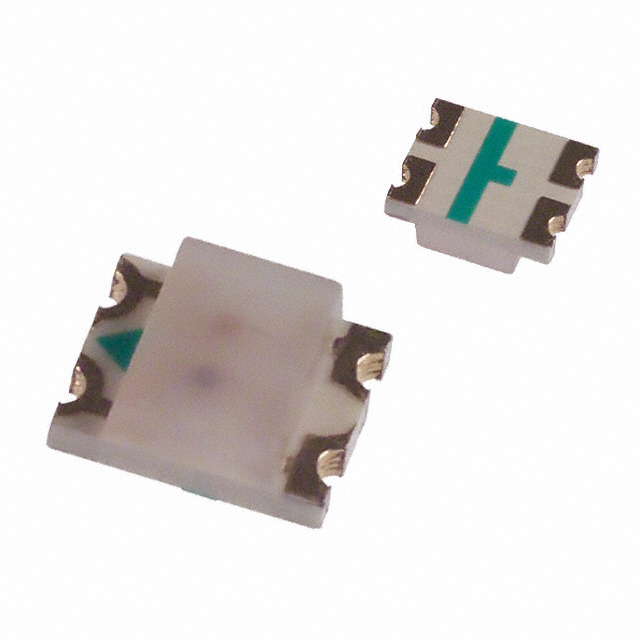

Green, Orange 572nm Green, 604nm Orange LED Indication - Discrete 2.2V Green, 2.2V Orange 1210 (3225 Metric)
Specifications
- Mfr
- Broadcom Limited
- Color
- Green, Orange
- Series
- -
- Features
- -
- Lens Size
- 2.06mm x 2.70mm
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Lens Color
- White
- Lens Style
- Rectangle with Flat Top
- Part Status
- Active
- Height (Max)
- 1.10mm
- Configuration
- Independent
- Mounting Type
- Surface Mount
- Viewing Angle
- 170°
Current - Test20mA Green, 20mA Orange Package / Case1210 (3225 Metric) Size / Dimension3.20mm L x 2.70mm W Lens TransparencyDiffused Wavelength - Peak570nm Green, 605nm Orange Base Product NumberHSMF-C157 Millicandela Rating15mcd Green, 8mcd Orange Wavelength - Dominant572nm Green, 604nm Orange Voltage - Forward (Vf) (Typ)2.2V Green, 2.2V Orange Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥3.64000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.49800 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.78470 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥1.46180 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥1.35545 |
| Tape & Reel (TR) | 3,000 | ¥1.21850 |
| Tape & Reel (TR) | 6,000 | ¥1.14865 |
| Tape & Reel (TR) | 9,000 | ¥1.11283 |
| Tape & Reel (TR) | 15,000 | ¥1.07236 |
| Tape & Reel (TR) | 21,000 | ¥1.04829 |
| Tape & Reel (TR) | 30,000 | ¥1.02480 |
| Tape & Reel (TR) | 75,000 | ¥0.97297 |
