Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

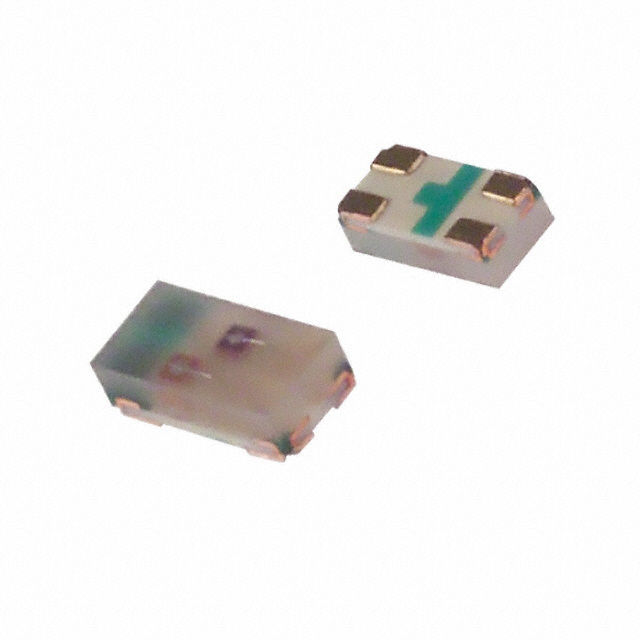

Green, Yellow 572nm Green, 586nm Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow 0603 (1608 Metric)
Specifications
- Mfr
- Broadcom Limited
- Color
- Green, Yellow
- Series
- -
- Features
- -
- Lens Size
- 1.60mm x 0.80mm
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Lens Color
- White
- Lens Style
- Rectangle with Flat Top
- Part Status
- Active
- Height (Max)
- 0.50mm
- Configuration
- Independent
- Mounting Type
- Surface Mount
- Viewing Angle
- 120°
Current - Test20mA Green, 20mA Yellow Package / Case0603 (1608 Metric) Size / Dimension1.60mm L x 0.80mm W Lens TransparencyDiffused Wavelength - Peak570nm Green, 589nm Yellow Base Product NumberHSMF-C166 Millicandela Rating15mcd Green, 8mcd Yellow Wavelength - Dominant572nm Green, 586nm Yellow Supplier Device Package0603 Voltage - Forward (Vf) (Typ)2.2V Green, 2.1V Yellow Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥5.04000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.48200 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.51820 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.08552 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥1.94337 |
| Cut Tape (CT) & Digi-Reel® | 2,000 | ¥1.82250 |
| Tape & Reel (TR) | 4,000 | ¥1.71995 |
| Tape & Reel (TR) | 8,000 | ¥1.63298 |
| Tape & Reel (TR) | 12,000 | ¥1.58842 |
| Tape & Reel (TR) | 20,000 | ¥1.53811 |
| Tape & Reel (TR) | 28,000 | ¥1.50820 |
| Tape & Reel (TR) | 40,000 | ¥1.47904 |
