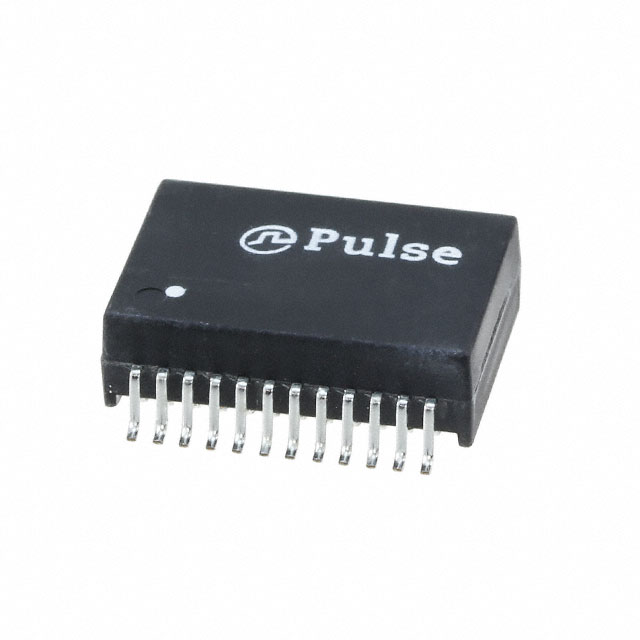

HX6098FNLT
PULSE XFMR 1 CT:1CT TX/RX 120UH
Manufacturer: Pulse ElectronicsIC code: 553-HX6098FNLTTR-ND - Tape & Reel (TR) || 553-HX6098FNLTCT-ND - Cut Tape (CT) || 553-HX6098FNLTDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
120µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Specifications
- Series
- -
- Weight
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Inductance
- 120µH
- Part Status
- Active
- Manufacturer
- Pulse Electronics
- Mounting Type
- Surface Mount
- ET (Volt-Time)
- -
- Size / Dimension
- 0.715" L x 0.595" W (18.16mm x 15.11mm)
- Transformer Type
- LAN 10/100/1000 Base-T
- Height - Seated (Max)
- 0.260" (6.60mm)
- Operating Temperature
- -40°C ~ 85°C
