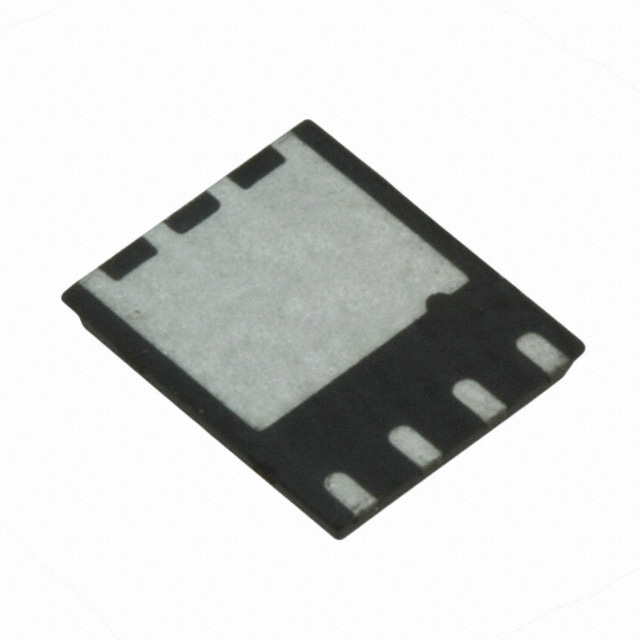

IRFH7914TRPBF
IRFH7914 - 12V-300V N-CHANNEL PO
Manufacturer: International RectifierIC code: 2156-IRFH7914TRPBF-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 30 V 15A (Ta), 35A (Tc) 3.1W (Ta) Surface Mount 8-PQFN (5x6)
Specifications
- Mfr
- International Rectifier
- Grade
- -
- Series
- HEXFET®
- FET Type
- N-Channel
- Packaging
- Bulk
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 8-PowerTDFN
- Vgs(th) (Max) @ Id
- 2.35V @ 25µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 8.7mOhm @ 14A, 10V
- Power Dissipation (Max)
- 3.1W (Ta)
- Supplier Device Package
- 8-PQFN (5x6)
- Gate Charge (Qg) (Max) @ Vgs
- 12 nC @ 4.5 V
