IRFHM830DTRPBF

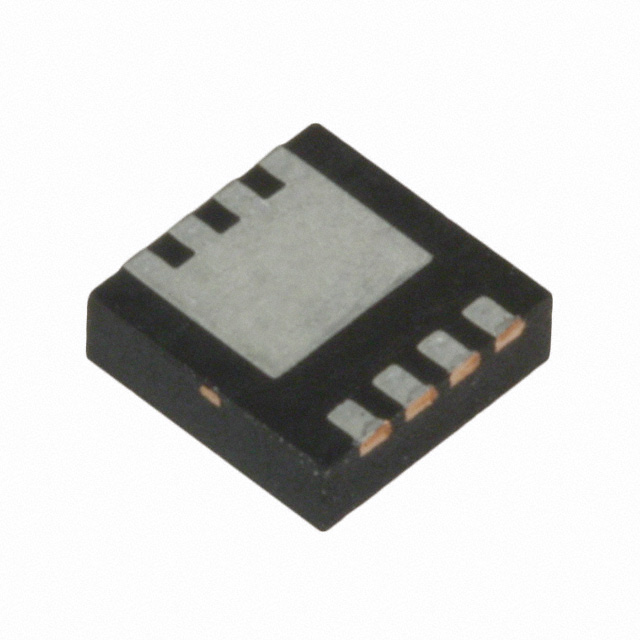

MOSFET N-CH 30V 20A/40A PQFN
Manufacturer: Infineon TechnologiesIC code: IRFHM830DTRPBF-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 30 V 20A (Ta), 40A (Tc) 2.8W (Ta), 37W (Tc) Surface Mount PQFN (3x3)
Specifications
- Mfr
- Infineon Technologies
- Grade
- -
- Series
- HEXFET®
- FET Type
- N-Channel
- Packaging
- Tape & Reel (TR)
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 8-VQFN Exposed Pad
- Vgs(th) (Max) @ Id
- 2.35V @ 50µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 4.3mOhm @ 20A, 10V
- Power Dissipation (Max)
- 2.8W (Ta), 37W (Tc)
- Supplier Device Package
- PQFN (3x3)
- Gate Charge (Qg) (Max) @ Vgs
