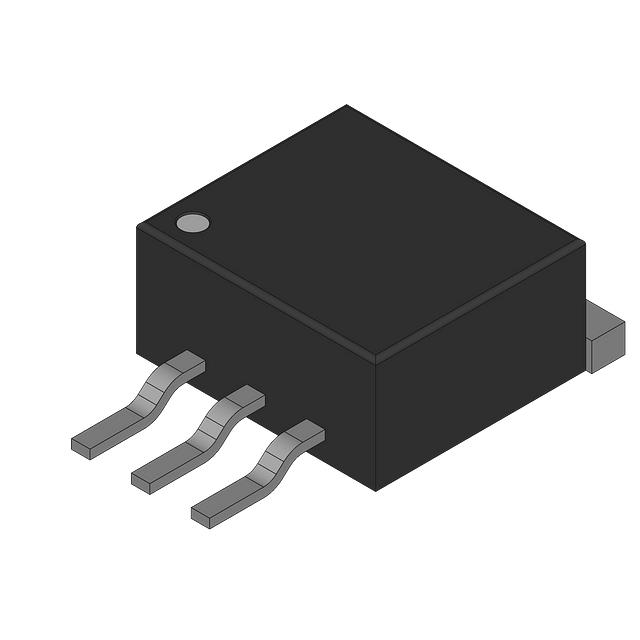

ISL9V3036D3S
IGBT 360V 21A TO-252
Manufacturer: Fairchild SemiconductorIC code: 2156-ISL9V3036D3S-FS-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
IGBT 360 V 21 A 150 W Surface Mount TO-252 (DPAK)
Specifications
- Series
- EcoSPARK®
- IGBT Type
- -
- Packaging
- Tube
- Input Type
- Logic
- Gate Charge
- 17 nC
- Part Status
- Obsolete
- Power - Max
- 150 W
- Manufacturer
- Fairchild Semiconductor
- Mounting Type
- Surface Mount
- Package / Case
- TO-252-3, DPAK (2 Leads + Tab), SC-63
- Test Condition
- 300V, 1kOhm, 5V
- Switching Energy
- -
- Td (on/off) @ 25°C
- -/4.8µs
- Operating Temperature
- -40°C ~ 175°C (TJ)
- Supplier Device Package
- TO-252 (DPAK)
- Vce(on) (Max) @ Vge, Ic
- 1.6V @ 4V, 6A
- Current - Collector (Ic) (Max)
- 21 A
- Voltage - Collector Emitter Breakdown (Max)
