Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

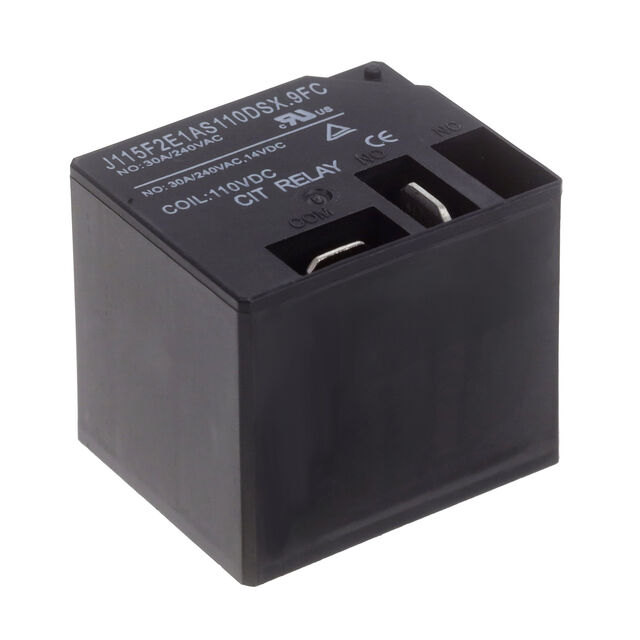

General Purpose Relay SPST-NO (1 Form A) 110VDC Coil Socketable
Specifications
- Mfr
- CIT Relay and Switch
- Grade
- -
- Series
- J115F2E
- Features
- -
- Coil Type
- Non Latching
- Packaging
- Tube
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- Sealed - Fully
- Coil Current
- 8.2 mA
- Coil Voltage
- 110VDC
- Contact Form
- SPST-NO (1 Form A)
- Operate Time
- 15 ms
Approval AgencycURus, TUV Coil Resistance13.445 kOhms Contact MaterialSilver Cadmium Oxide (AgCdO) Switching Voltage277VAC, 110VDC - Max Termination StylePlug In, Quick Connect - 0.250" (6.3mm) Load - Max Switching7200VA, 840W Must Operate Voltage82.5 VDC Must Release Voltage11 VDC Operating Temperature-55°C ~ 125°C Contact Rating (Current)30 A Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥22.29000 |
| Tube | 15 | ¥19.42867 |
| Tube | 30 | ¥18.76700 |
| Tube | 60 | ¥18.12433 |
| Tube | 105 | ¥17.62124 |
| Tube | 255 | ¥16.85200 |
| Tube | 510 | ¥16.27388 |
| Tube | 1,005 | ¥15.72667 |
| Tube | 5,010 | ¥14.50201 |
