JANTX2N6804

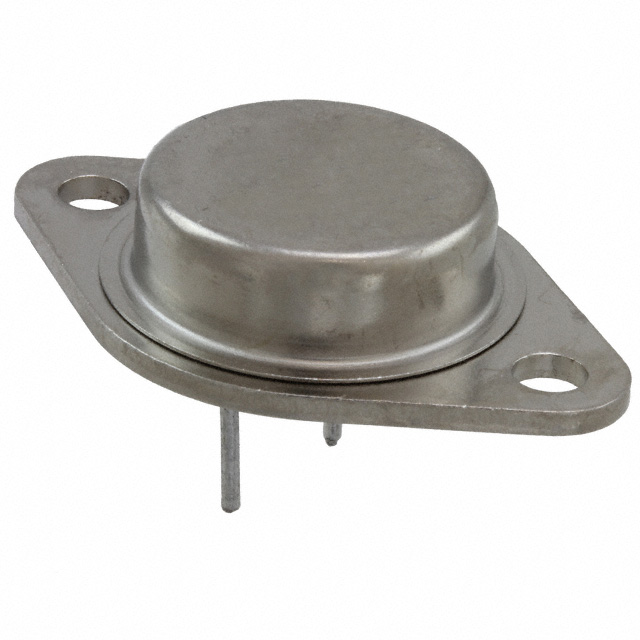

MOSFET P-CH 100V 11A TO204AA
Manufacturer: Microsemi CorporationIC code: 150-JANTX2N6804-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
P-Channel 100 V 11A (Tc) 4W (Ta), 75W (Tc) Through Hole TO-204AA
Specifications
- Mfr
- Microsemi Corporation
- Grade
- Military
- Series
- -
- FET Type
- P-Channel
- Packaging
- Bulk
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Obsolete
- Mounting Type
- Through Hole
- Qualification
- MIL-PRF-19500/562
- Package / Case
- TO-204AA, TO-3
- Vgs(th) (Max) @ Id
- 4V @ 250µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 360mOhm @ 11A, 10V
- Power Dissipation (Max)
- 4W (Ta), 75W (Tc)
- Supplier Device Package
- TO-204AA
- Gate Charge (Qg) (Max) @ Vgs
- 29 nC @ 10 V
