Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

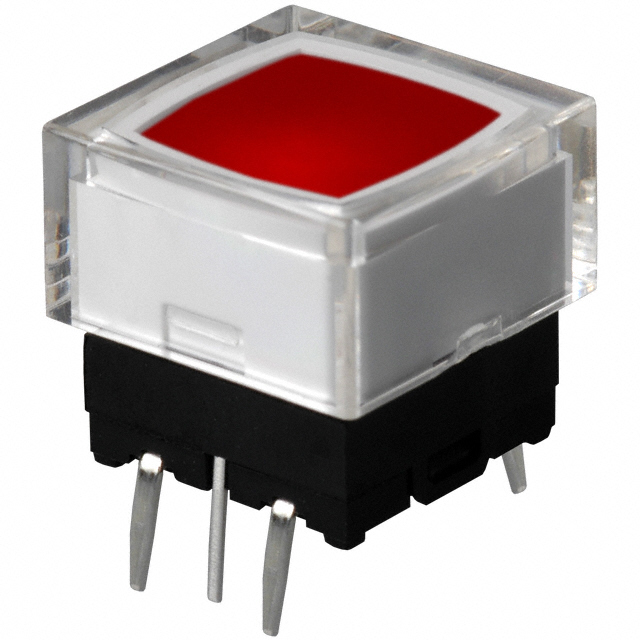

Tactile Switch SPST-NO Top Actuated Through Hole
Specifications
- Mfr
- NKK Switches
- Series
- JB
- Circuit
- SPST-NO
- Outline
- 10.00mm x 10.00mm
- Features
- Process Sealed
- Packaging
- Bulk
- Part Status
- Active
- Illumination
- Illuminated
- Actuator Type
- Square Button
- Mounting Type
- Through Hole
- Switch Travel
- 0.25mm
- Mechanical Life
- 5,000,000 Cycles
- Operating Force
- 176gf
Actuator MaterialPolyacetal Ingress ProtectionIP67 - Dust Tight, Waterproof Base Product NumberJB15LPC Actuator OrientationTop Actuated Operating Temperature-25°C ~ 70°C Contact Rating @ Voltage0.05A @ 24VDC Illumination Type, ColorLED, Red Actuator Length, Right Angle- Illumination Voltage (Nominal)1.8 VDC Actuator Height off PCB, Vertical11.20mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥53.59000 |
| Bulk | 10 | ¥44.64100 |
| Bulk | 25 | ¥41.35320 |
| Bulk | 100 | ¥36.90070 |
| Bulk | 250 | ¥34.35948 |
| Bulk | 500 | ¥32.65770 |
| Bulk | 1,000 | ¥31.14181 |
| Bulk | 2,500 | ¥29.40842 |
