Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

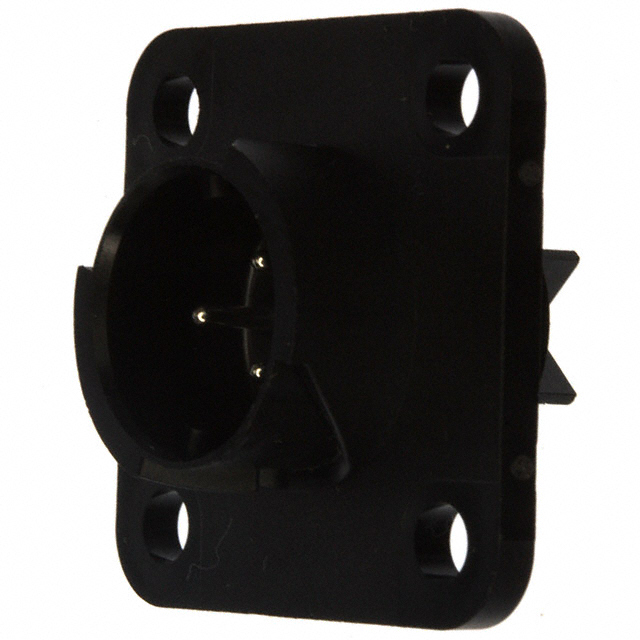

4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup
Specifications
- Mfr
- JAE Electronics
- Color
- Black
- Series
- JN1
- Features
- -
- Packaging
- Bag
- Shielding
- -
- Orientation
- N (Normal)
- Part Status
- Active
- Termination
- Solder Cup
- Applications
- -
- Shell Finish
- -
- Cable Opening
- 0.591" (15.00mm)
- Mounting Type
- Panel Mount
- Connector Type
Shell MaterialSynthetic Resin Insert MaterialSynthetic Resin Contact MaterialCopper Alloy Ingress ProtectionIP67 - Dust Tight, Waterproof Base Product NumberJN1AS04M Number of Positions4 (3 + PE) Operating Temperature-20°C ~ 125°C Contact Finish - MatingSilver Backshell Material, Plating- Material Flammability Rating- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bag | 1 | ¥54.75000 |
| Bag | 10 | ¥46.55200 |
| Bag | 25 | ¥43.63560 |
| Bag | 50 | ¥41.55000 |
| Bag | 100 | ¥39.56690 |
| Bag | 250 | ¥37.08992 |
| Bag | 500 | ¥35.32064 |
| Bag | 1,000 | ¥33.63628 |
| Bag | 2,500 | ¥31.53321 |
