Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

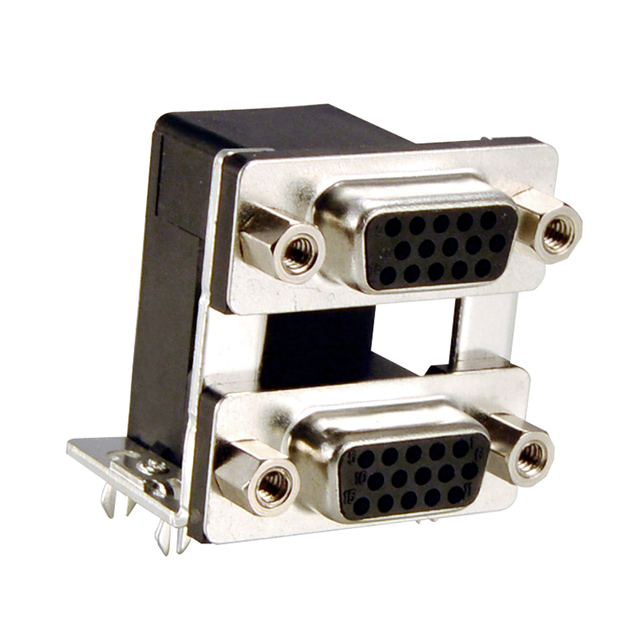

15, 15 Position D-Sub, High Density - Stacked Receptacle, Female Sockets Connector
Specifications
- Mfr
- Kycon, Inc.
- Color
- Black
- Series
- K42X
- Features
- Board Lock, Mounting Brackets
- Packaging
- Tray
- Wire Gauge
- -
- Part Status
- Active
- Termination
- Solder
- Contact Form
- -
- Contact Type
- Signal
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Receptacle, Female Sockets
- Contact Finish
- Gold
Flange FeatureMating Side, Female Screwlock (4-40) Backset Spacing0.350" (8.89mm) Connector StyleD-Sub, High Density - Stacked Contact MaterialPhosphor Bronze Base Product NumberK42X-E15 Dielectric MaterialPolybutylene Terephthalate (PBT), Glass Filled Number of Positions15, 15 Current Rating (Amps)1.2A Operating Temperature-55°C ~ 105°C Shell Material, FinishSteel, Nickel Plated Contact Finish ThicknessFlash Material Flammability RatingUL94 V-0 Shell Size, Connector Layout1 (DE, E); 1 (DE, E) High Density Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥170.78000 |
| Tray | 10 | ¥145.15500 |
| Tray | 27 | ¥135.33074 |
| Tray | 54 | ¥128.87407 |
| Tray | 108 | ¥122.72509 |
| Tray | 270 | ¥115.04904 |
| Tray | 513 | ¥109.96218 |
