Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

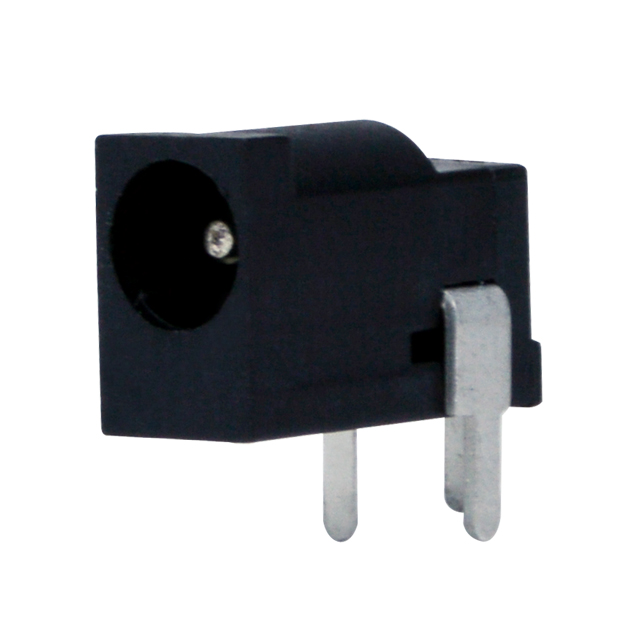

Power Barrel Connector Jack 1.30mm ID (0.051"), 3.50mm OD (0.138") Through Hole, Right Angle
Specifications
- Gender
- Male
- Series
- KLDX
- Features
- -
- Includes
- -
- Packaging
- Tray
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- Kycon, Inc.
- Body Material
- -
- Mounting Type
- Through Hole, Right Angle
Actual Diameter0.051" (1.30mm ID), 0.165" (4.20mm OD) Contact MaterialBrass, Phosphor Bronze Housing MaterialThermoplastic Internal Switch(s)Single Switch, Normally Closed Current Rating (Amps)2.5 A Operating Temperature-25°C ~ 85°C Contact Material - PlatingTin Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 3 Contacts Industry Recognized Mating Diameter1.30mm ID (0.051"), 3.50mm OD (0.138") Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥7.19000 |
| Tray | 10 | ¥6.12000 |
| Tray | 25 | ¥5.73920 |
| Tray | 50 | ¥5.46320 |
| Tray | 100 | ¥5.20270 |
| Tray | 400 | ¥4.71680 |
| Tray | 800 | ¥4.49164 |
| Tray | 1,200 | ¥4.36490 |
| Tray | 2,800 | ¥4.11158 |
