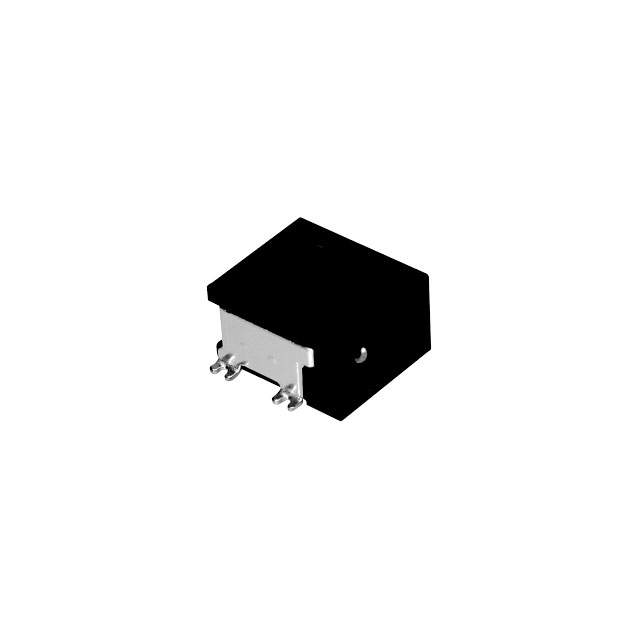

KLDX-SMT-0201L-ATR
MINI SMT POWER JACK 1.0 MM DIA T
Manufacturer: Kycon, Inc.IC code: 2092-KLDX-SMT-0201L-ATR-ND - Tape & Reel (TR) || 2092-KLDX-SMT-0201L-ATRCT-ND - Cut Tape (CT) || 2092-KLDX-SMT-0201L-ATRDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Power Barrel Connector Jack 1.00mm ID (0.039"), 3.50mm OD (0.138") Surface Mount, Right Angle
Specifications
- Gender
- Male
- Series
- KLDX-SMT
- Features
- Board Guide
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- Kycon, Inc.
- Body Material
- -
- Mounting Type
- Surface Mount, Right Angle
Actual Diameter0.039" (1.00mm ID), 0.154" (3.90mm OD) Contact MaterialCopper Alloy Housing MaterialThermoplastic Internal Switch(s)Single Switch, Normally Closed Base Product NumberKLDX-SMT Operating Temperature-25°C ~ 85°C Contact Material - PlatingSilver Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 3 Contacts Industry Recognized Mating Diameter1.00mm ID (0.039"), 3.50mm OD (0.138") Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥14.72000 |
| Tape & Reel (TR) | 1,600 | ¥8.75022 |
