Description

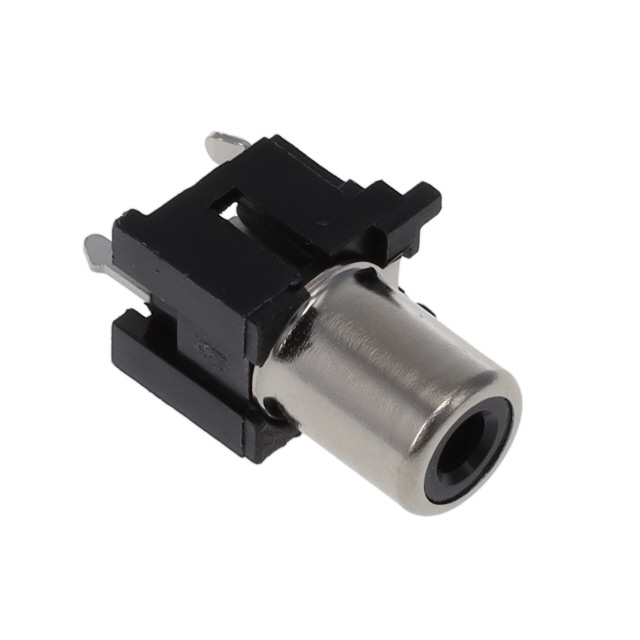

3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Kinked Pin
Specifications
- Mfr
- Kycon, Inc.
- Gender
- Female
- Series
- KLPX
- Features
- Board Lock
- Includes
- -
- Packaging
- Bulk
- Shielding
- Unshielded
- Body Color
- Silver, Black
- Part Status
- Active
- Termination
- Kinked Pin
- Thread Size
- -
- Signal Lines
- Mono
- Body Material
- Copper Alloy
- Cable Opening
Mounting TypeThrough Hole Connector TypePhono (RCA) Jack Actual Diameter0.130" (3.30mm ID), 0.327" (8.30mm OD) Contact MaterialCopper Alloy Housing MaterialPolybutylene Terephthalate (PBT), Glass Filled Internal Switch(s)Does Not Contain Switch Base Product NumberKLPX-0848 Current Rating (Amps)300 mA Operating Temperature-20°C ~ 60°C Contact Material - PlatingTin Number of Positions/Contacts2 Conductors, 2 Contacts Industry Recognized Mating Diameter3.20mm ID, 9.00mm OD (RCA) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥6.04000 |
| Bulk | 10 | ¥5.13600 |
| Bulk | 25 | ¥4.81000 |
| Bulk | 50 | ¥4.58000 |
| Bulk | 100 | ¥4.36160 |
| Bulk | 250 | ¥4.08804 |
| Bulk | 500 | ¥3.89268 |
| Bulk | 1,000 | ¥3.70669 |
| Bulk | 2,500 | ¥3.47462 |
