Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

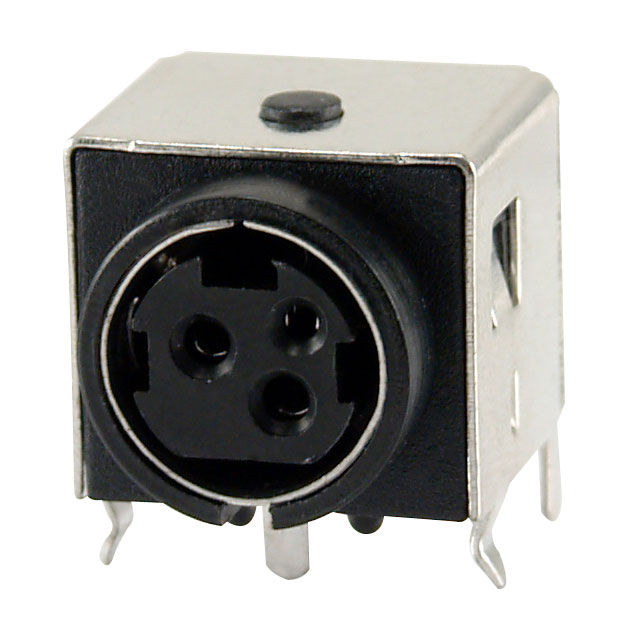

3 (1 + 2 Power) Position Circular Connector Jack, Female Sockets Solder
Specifications
- Mfr
- Kycon, Inc.
- Color
- Black
- Series
- KPJX
- Features
- Board Guide, Board Lock
- Packaging
- Tray
- Shielding
- Shielded
- Orientation
- Keyed
- Part Status
- Active
- Termination
- Solder
- Applications
- Digital, Power
- Shell Finish
- -
- Cable Opening
- -
- Mounting Type
- Through Hole, Right Angle
Shell MaterialPolybutylene Terephthalate (PBT) Insert MaterialPolybutylene Terephthalate (PBT) Contact MaterialBrass, Phosphor Bronze Number of Positions3 (1 + 2 Power) Shell Size - InsertPower DIN Current Rating (Amps)1A, 7.5A Operating Temperature-40°C ~ 75°C Contact Finish - MatingTin Backshell Material, Plating- Material Flammability RatingUL94 V-0 Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥11.74000 |
| Tray | 10 | ¥9.99800 |
| Tray | 25 | ¥9.36840 |
| Tray | 50 | ¥8.92000 |
| Tray | 170 | ¥8.18047 |
| Tray | 340 | ¥7.78985 |
| Tray | 510 | ¥7.56996 |
| Tray | 1,020 | ¥7.20860 |
| Tray | 2,550 | ¥6.75742 |
