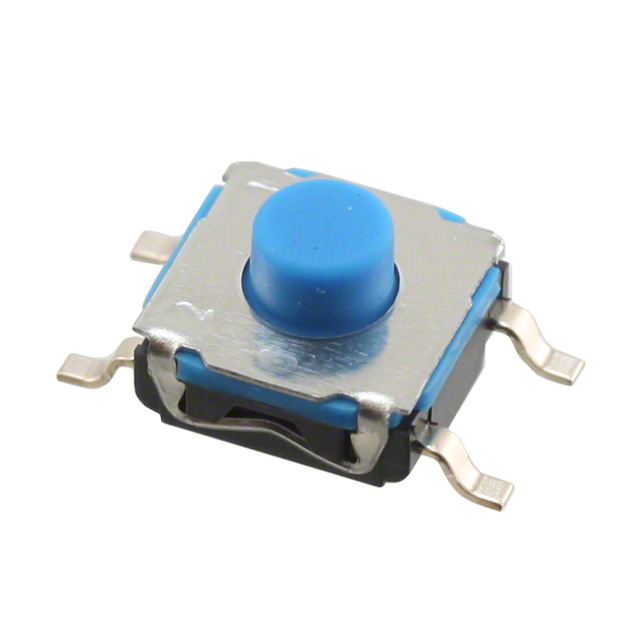

KSC721G LFS
SWITCH TACTILE SPST-NO 0.05A 32V
Manufacturer: C&KIC code: CKN10304TR-ND - Tape & Reel (TR) || CKN10304CT-ND - Cut Tape (CT) || CKN10304DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- C&K
- Series
- KSC
- Circuit
- SPST-NO
- Outline
- 6.20mm x 6.20mm
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.30mm
- Mechanical Life
- 300,000 Cycles
- Operating Force
- 225gf
Termination StyleGull Wing Ingress ProtectionIP67 - Dust Tight, Waterproof Base Product NumberKSC721 Actuator OrientationTop Actuated Operating Temperature-40°C ~ 85°C Contact Rating @ Voltage0.05A @ 32VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical4.30mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tape & Reel (TR) | 1,000 | ¥3.07429 |
| Tape & Reel (TR) | 2,000 | ¥2.91220 |
| Tape & Reel (TR) | 3,000 | ¥2.82475 |
| Tape & Reel (TR) | 5,000 | ¥2.72233 |
| Tape & Reel (TR) | 7,000 | ¥2.65948 |
| Tape & Reel (TR) | 10,000 | ¥2.59675 |
| Tape & Reel (TR) | 25,000 | ¥2.45329 |
| Cut Tape (CT) | 1 | ¥5.21000 |
| Cut Tape (CT) | 10 | ¥4.46600 |
| Cut Tape (CT) | 25 | ¥4.16480 |
| Cut Tape (CT) | 100 | ¥3.71900 |
| Cut Tape (CT) | 250 | ¥3.44428 |
| Cut Tape (CT) | 500 | ¥3.25192 |
| Digi-Reel® | 1 | ¥4.55000 |
| Digi-Reel® | 10 | ¥4.41600 |
| Digi-Reel® | 25 | ¥4.25720 |
| Digi-Reel® | 100 | ¥3.68350 |
| Digi-Reel® | 250 | ¥3.35596 |
| Digi-Reel® | 500 | ¥3.11050 |
