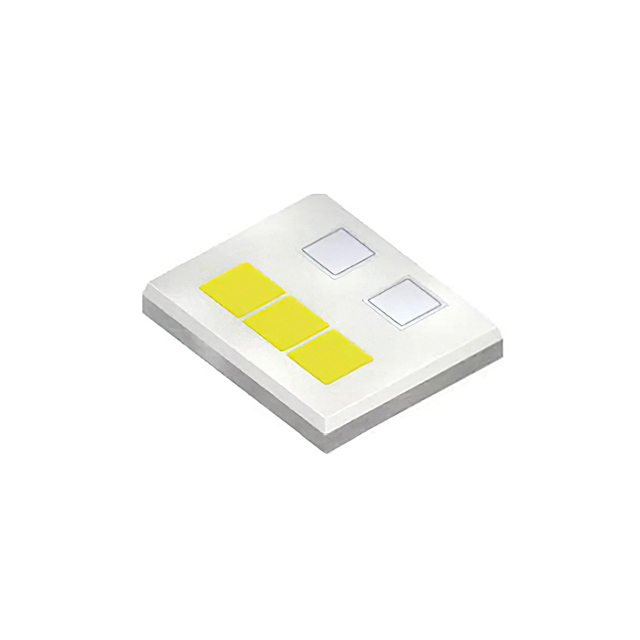

KW3 C3LPL3.TK-6TTC-5L16M1-0-1A-S
THE OSLON SUBMOUNT PL IS A VERSA
Manufacturer: ams-OSRAM USA INC.IC code: 475-KW3C3LPL3.TK-6TTC-5L16M1TR-ND - Tape & Reel (TR) || 475-KW3C3LPL3.TK-6TTC-5L16M1CT-ND - Cut Tape (CT) || 475-KW3C3LPL3.TK-6TTC-5L16M1DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
LED Lighting OSLON® Submount PL White 9.8V 1A 120° 2-SMD, No Lead Exposed Pad
Specifications
- Mfr
- ams-OSRAM USA INC.
- Color
- White
- Grade
- Automotive
- Series
- OSLON® Submount PL
- CCT (K)
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Current - Max
- 1.5A
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q102
- Viewing Angle
- 120°
- Current - Test
- 1A
- Package / Case
Size / Dimension0.181" L x 0.148" W (4.60mm x 3.75mm) Height - Seated (Max)0.034" (0.87mm) CRI (Color Rendering Index)- Flux @ 25°C, Current - Test1413lm (1230lm ~ 1595lm) Flux @ 85°C, Current - Test- Lumens/Watt @ Current - Test144 lm/W Voltage - Forward (Vf) (Typ)9.8V Thermal Resistance of Package0.98°C/W Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥52.10000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥39.19100 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥31.59140 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥28.90212 |
| Tape & Reel (TR) | 2,000 | ¥26.28038 |
