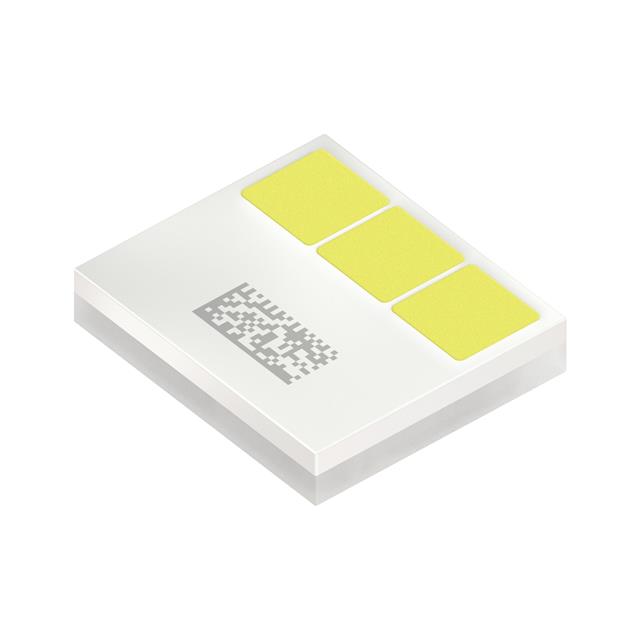

KW3 CGLNM3.TK-T4T9-4L07M0-JCAB-A00-S
LED OSLON
Manufacturer: ams-OSRAM USA INC.IC code: 475-KW3CGLNM3.TK-T4T9-4L07M0-JCABTR-ND - Tape & Reel (TR) || 475-KW3CGLNM3.TK-T4T9-4L07M0-JCABCT-ND - Cut Tape (CT) || 475-KW3CGLNM3.TK-T4T9-4L07M0-JCABDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
LED Lighting OSLON® Compact PL White 9.275V 1A 120° 2-SMD, No Lead Exposed Pad
Specifications
- Mfr
- ams-OSRAM USA INC.
- Color
- White
- Grade
- Automotive
- Series
- OSLON® Compact PL
- CCT (K)
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Current - Max
- 1.5A
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q102
- Viewing Angle
- 120°
- Current - Test
- 1A
- Package / Case
Size / Dimension0.140" L x 0.122" W (3.56mm x 3.10mm) Height - Seated (Max)0.030" (0.77mm) Supplier Device PackageSMD CRI (Color Rendering Index)- Flux @ 25°C, Current - Test1283lm (1140lm ~ 1425lm) Flux @ 85°C, Current - Test- Lumens/Watt @ Current - Test138 lm/W Voltage - Forward (Vf) (Typ)9.275V Thermal Resistance of Package1.5°C/W Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥26.88000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥19.61600 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥15.31770 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥13.43014 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥12.82518 |
| Tape & Reel (TR) | 2,000 | ¥12.29525 |
| Tape & Reel (TR) | 4,000 | ¥11.85516 |
| Tape & Reel (TR) | 6,000 | ¥11.62999 |
