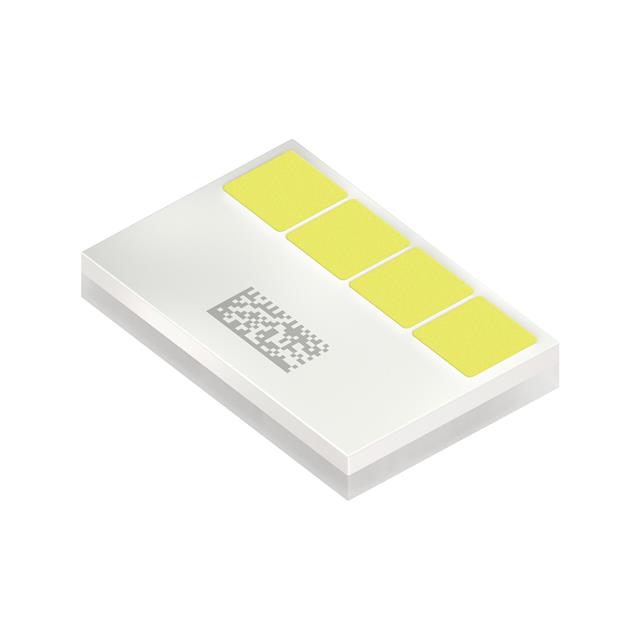

KW4 CHLNM3.TK-F4FB-4L07M0-AGAE-A00-S
LED OSLON
Manufacturer: ams-OSRAM USA INC.IC code: 475-KW4CHLNM3.TK-F4FB-4L07M0-AGAETR-ND - Tape & Reel (TR) || 475-KW4CHLNM3.TK-F4FB-4L07M0-AGAECT-ND - Cut Tape (CT) || 475-KW4CHLNM3.TK-F4FB-4L07M0-AGAEDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
LED Lighting OSLON® Compact PL White 12.35V 1A 120° 2-SMD, No Lead Exposed Pad
Specifications
- Mfr
- ams-OSRAM USA INC.
- Color
- White
- Grade
- -
- Series
- OSLON® Compact PL
- CCT (K)
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Current - Max
- 1.5A
- Mounting Type
- Surface Mount
- Qualification
- -
- Viewing Angle
- 120°
- Current - Test
- 1A
- Package / Case
Size / Dimension0.183" L x 0.122" W (4.66mm x 3.10mm) Height - Seated (Max)0.030" (0.77mm) Supplier Device PackageSMD CRI (Color Rendering Index)- Flux @ 25°C, Current - Test1720lm (1500lm ~ 1940lm) Flux @ 85°C, Current - Test- Lumens/Watt @ Current - Test139 lm/W Voltage - Forward (Vf) (Typ)12.35V Thermal Resistance of Package1.1°C/W Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥35.48000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥26.23200 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥20.75680 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥18.36020 |
| Tape & Reel (TR) | 1,000 | ¥17.58076 |
| Tape & Reel (TR) | 2,000 | ¥16.92131 |
| Tape & Reel (TR) | 3,000 | ¥16.58384 |
| Tape & Reel (TR) | 5,000 | ¥16.20326 |
