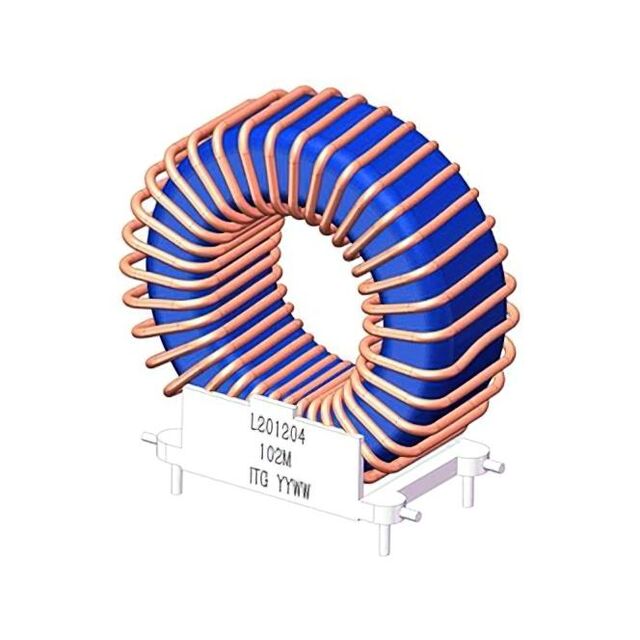

L201204-161MHF
Toroid 165uH 23.5mOhm DCR 13A
Manufacturer: ITG Electronics, Inc.IC code: 3013-L201204-161MHF-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
165 µH Unshielded Toroidal Inductor 17 A 23.5mOhm Max Radial, Vertical Cylinder, 4 Leads (Open)
Specifications
- Mfr
- ITG Electronics, Inc.
- Type
- Toroidal
- Series
- L201204
- Ratings
- -
- Features
- -
- Q @ Freq
- -
- Packaging
- Tray
- Shielding
- Unshielded
- Tolerance
- ±20%
- Inductance
- 165 µH
- Part Status
- Active
- Mounting Type
- Through Hole
- Package / Case
- Radial, Vertical Cylinder, 4 Leads (Open)
- Material - Core
- Alloy Powder
- Size / Dimension
- 2.106" L x 1.043" W (53.50mm x 26.50mm)
- DC Resistance (DCR)
- 23.5mOhm Max
- Current Rating (Amps)
- 17 A
- Height - Seated (Max)
- 2.165" (55.00mm)
