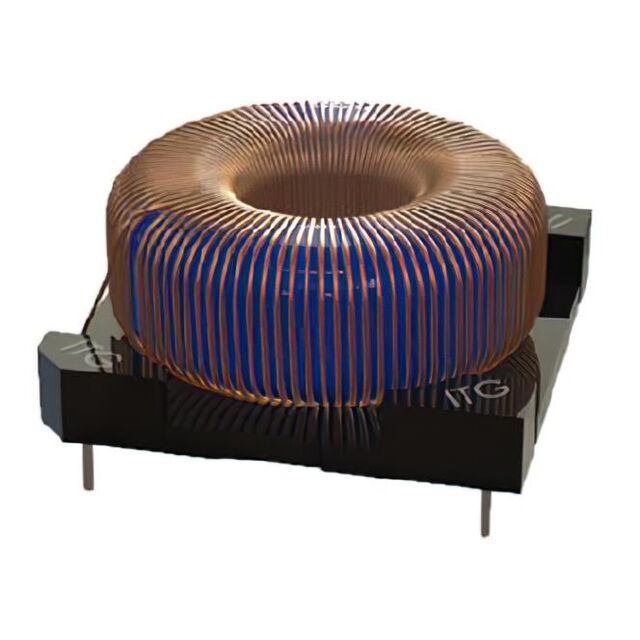

L301307-222K
Toroid DIP 2.2mH 165mOhm 1.3A
Manufacturer: ITG Electronics, Inc.IC code: 3013-L301307-222K-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
2.2 mH Unshielded Toroidal Inductor 3.5 A 165mOhm Max Radial, Horizontal, 4 Leads (Open)
Specifications
- Mfr
- ITG Electronics, Inc.
- Type
- Toroidal
- Series
- L301307
- Ratings
- -
- Features
- -
- Q @ Freq
- -
- Packaging
- Tray
- Shielding
- Unshielded
- Tolerance
- ±10%
- Inductance
- 2.2 mH
- Part Status
- Active
- Mounting Type
- Through Hole
- Package / Case
- Radial, Horizontal, 4 Leads (Open)
- Material - Core
- Sendust
- Size / Dimension
- 1.713" L x 1.713" W (43.50mm x 43.50mm)
- DC Resistance (DCR)
- 165mOhm Max
- Current Rating (Amps)
- 3.5 A
- Height - Seated (Max)
- 1.063" (27.00mm)
